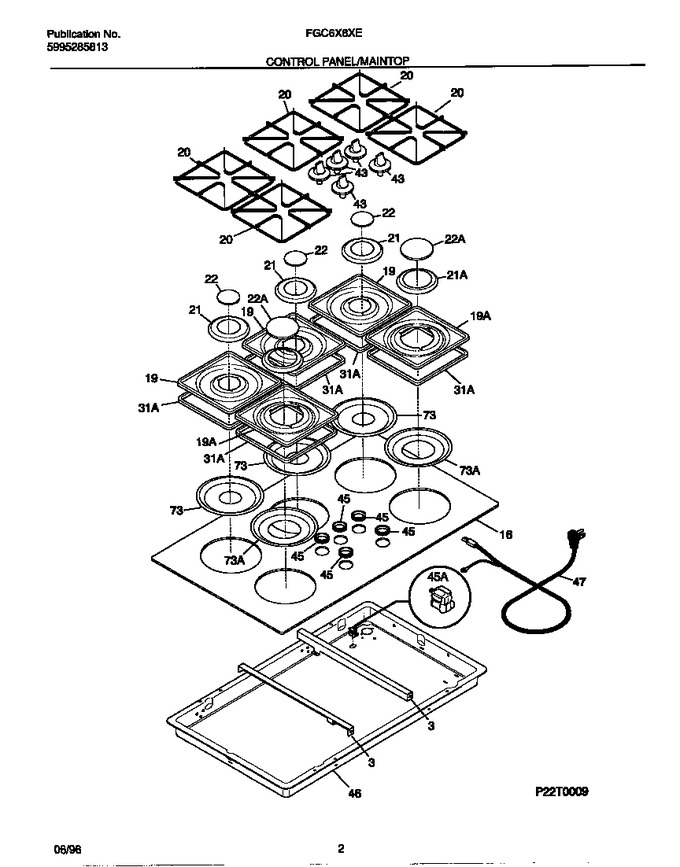

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318043300		Support, Main Top, (2)		Appelez-nous	-
16	318079607		Main Top, White		Appelez-nous	-
19	5303311260		Pan-burner, Gray, (2), Large		Appelez-nous	-
19	5303307928		Pan-burner, Gray, (4), Small		Appelez-nous	-
20	318096700		Spacer, Center Grate (not Illustrated)		Appelez-nous	-
20	318024901		Grate, (4)		Appelez-nous	-
20	318024801		Grate, Center		Appelez-nous	-
21	318050500		Trim Ring, Gray, (4)		Appelez-nous	-
21	318050600		Trim Ring, Gray, Large, (2)		Appelez-nous	-
22	316011016		Cap-burner, Gloss Grey, Small, (2)		Appelez-nous	-
22	316011017		Cap-burner, Gloss Grey, Large, (2)		Appelez-nous	-
31	5303307931		Gasket, Pan		Appelez-nous	-
43	318099101		Knob-control, (5)		Appelez-nous	-
45	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
45	5303307933		Bushing, Top Burner Knob		Appelez-nous	-
46	318077000		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
73	318057100		Shield-heat, (4), Small		Appelez-nous	-
73	318057101		Shield-heat, (2), Large		Appelez-nous	-
