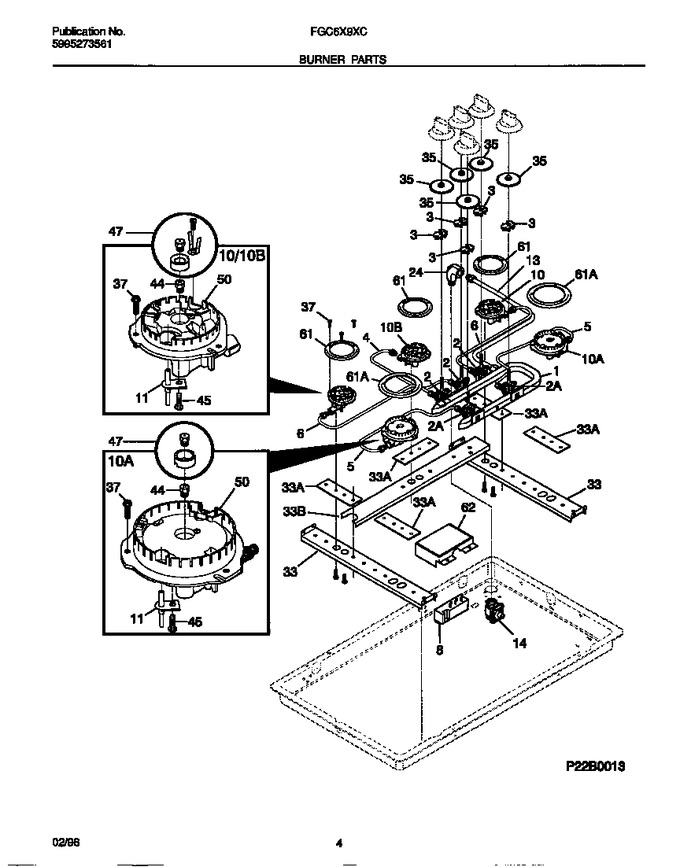

03 - Burner Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318078000		Manifold Pipe		Appelez-nous	-
1	08011955		Screw, Pan Head, 10-24 X 3/8, Square Drive (not Illustrated)			Immediately	$ 9.36
2	5303269845		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, W/gasket (not Illustrated)		Appelez-nous	-
2	5303935042		Valve-top Burner, 2-position, (4)				$ 175.25
2	316036801		Valve-top Burner, Large, (2), W/screw		Appelez-nous	-
3	316032002		Switch-igniter, (4)				$ 63.46
4	5303305456		Tube-burner, Rf, Rr		Appelez-nous	-
5	318054601		Tube-burner, Lf, Rf		Appelez-nous	-
6	318054600		Tube-burner, Lr, Rr		Appelez-nous	-
6	5303311261		Screw, Burner Tube (not Illustrated)		Appelez-nous	-
8	808608804		Spark Module   (Replaces: 318079000)			Immediately	$ 76.06
10	318055001		Burner Assy-top, Sealed, 9000 Btu, (4), Includes, 11, 37		Appelez-nous	-
10	318055100		Burner Assy-top, Sealed, 11000 Btu, (2), Includes, 11, 3		Appelez-nous	-
10	318055000		Burner Assy-top, Sealed, 6000 Btu, (2), Includes, 11, 37		Appelez-nous	-
11	316011200		Ignitor-top Burner, W/mtg Bracket			Immediately	$ 38.68
13	318054500		Tube, Connection, Manifold		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
24	318054000		Elbow Fitting		Appelez-nous	-
33	318072000		Bracket-burner Mtg, (4)		Appelez-nous	-
33	5303311263		Bracket-burner Mtg, (1)		Appelez-nous	-
33	5303307977		Bracket-burner Mtg, (2)		Appelez-nous	-
35	5303307978		Bushing-insulation		Appelez-nous	-
37	316069301		Screw-burner Mtg, Hex Washer Head, M3 X 0.50   (Replaces: 316069300)				$ 2.99
44	318088702		Orifice-top Burner, 11000 Btu, (2), Large		Appelez-nous	-
44	318088701		Orifice-top Burner, 6000 Btu, (2), Small		Appelez-nous	-
44	318088700		Orifice-top Burner, 9000 Btu, Small		Appelez-nous	-
45	316011100		Screw-igniter Mtg, Self-tapping, M3 X 5.8, (4)				$ 3.41
47	5303318666		Lp Conversion Kit, 5 Burner		Appelez-nous	-
50	316010601		Burner-top, Large, (2)				$ 42.42
50	5303935026		Burner-top, Small, (4), Includes 37		Appelez-nous	-
61	318083901		Trim Ring, Chrome, (2), Large		Appelez-nous	-
61	318083900		Trim Ring, Chrome, (3), Small		Appelez-nous	-
62	318077500		Cover, Spark Module		Appelez-nous	-
*22360	318065000		Restrictor		Appelez-nous	-
*22361	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*22362	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*22363	318052100		Harness-wiring		Appelez-nous	-
