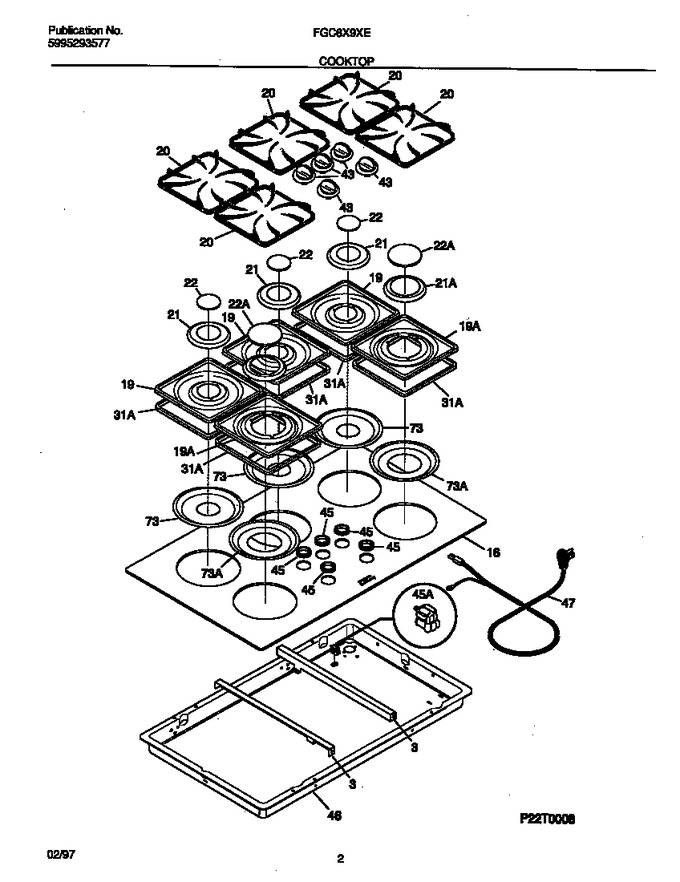

02 - Cooktop
03 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318043300 | Support, Main Top, (2) |
|
- | |||||
| 16 | 318079601 | Main Top, Glass, Black |
|
- | |||||
| 19 | 318066911 | Pan-burner, Large, Black, (2) |
|
$ 191.94 | |||||
| 19 | 318066901 | Pan-burner, Black, (4) |
|
- | |||||
| 20 | 5303307927 | Grate, Black |
|
- | |||||
| 21 | 5303209009 | Trim Ring, Black, (3) |
|
- | |||||
| 21 | 5303311292 | Trim Ring, Large, Black, (2) |
|
- | |||||
| 22 | 316011001 | Cap-burner, Black, (3) |
|
- | |||||
| 22 | 316011008 | Cap-burner, Black, Large, (2) |
|
- | |||||
| 31 | 5303307931 | Gasket, Pan |
|
- | |||||
| 43 | 318016504 | Knob-control, Black |
|
- | |||||
| 45 | 5304513507 | Bushing - Snap (Replaces: 3201437) |
|
$ 9.10 | |||||
| 45 | 5303307933 | Bushing, Top Burner Knob |
|
- | |||||
| 46 | 318077000 | Burner Box |
|
- | |||||
| 47 | 5303303991 | Cord-electric Power |
|
$ 96.50 | |||||
| 73 | 318057100 | Deflector, (4) |
|
- | |||||
| 73 | 318057101 | Deflector, Large |
|
- | |||||
| *88280 | 5303322267 | Bracket-mounting, Kit |
|
- |
