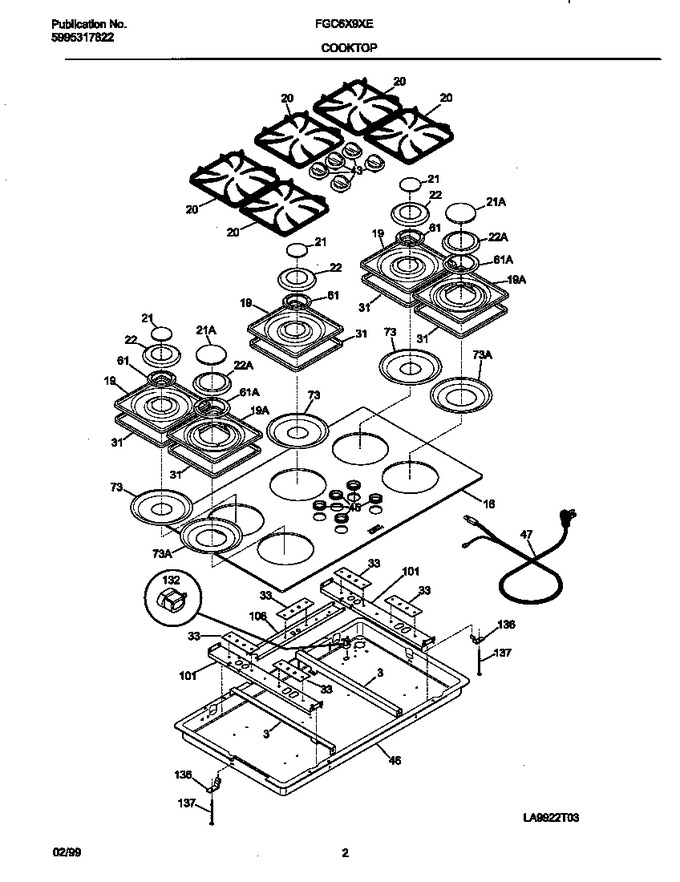

SELECT A DIAGRAM

01 - Cover


02 - Cooktop


03 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318043300		Glass-support		Appelez-nous	-
16	318079601		Maintop-black		Appelez-nous	-
19	318066901		Pan-burner,black		Appelez-nous	-
19	318066911		Pan-burner,black				$ 191.94
20	318120105		Grate-black		Appelez-nous	-
20	318024803		Grate-center		Appelez-nous	-
21	316098501		Cap-burner Small Black		Appelez-nous	-
21	316098505		Cap-burner Large				$ 56.28
22	316011304		Trim Ring Large, Black				$ 97.23
22	5303209009		Trim Ring Small,black		Appelez-nous	-
31	318053901		Gasket-vent   (Replaces: 318053900)				$ 33.60
33	318072000		Bracket-burner Mtg		Appelez-nous	-
43	318016504		Knob-control, Black		Appelez-nous	-
45	318146200		Bushing		Appelez-nous	-
46	318077000		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
55	318096700		Spacer,center Grate		Appelez-nous	-
61	318083901		Trim Ring		Appelez-nous	-
61	318083900		Trim Ring		Appelez-nous	-
73	318057101		Deflector		Appelez-nous	-
73	318057100		Deflector		Appelez-nous	-
101	318162300		Bracket-burner		Appelez-nous	-
106	318162301		Bracket-burner		Appelez-nous	-
132	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
136	5303935029		Fixation Support				$ 61.79
137	5303323138		Screw, 10-24 X 2 1/2				$ 14.13
*23920	318052123		Wire Harness		Appelez-nous	-
*23921	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*23922	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*23923	5303323429		Screw, 8-32 X 5/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
