SELECT A DIAGRAM

01 - Cover

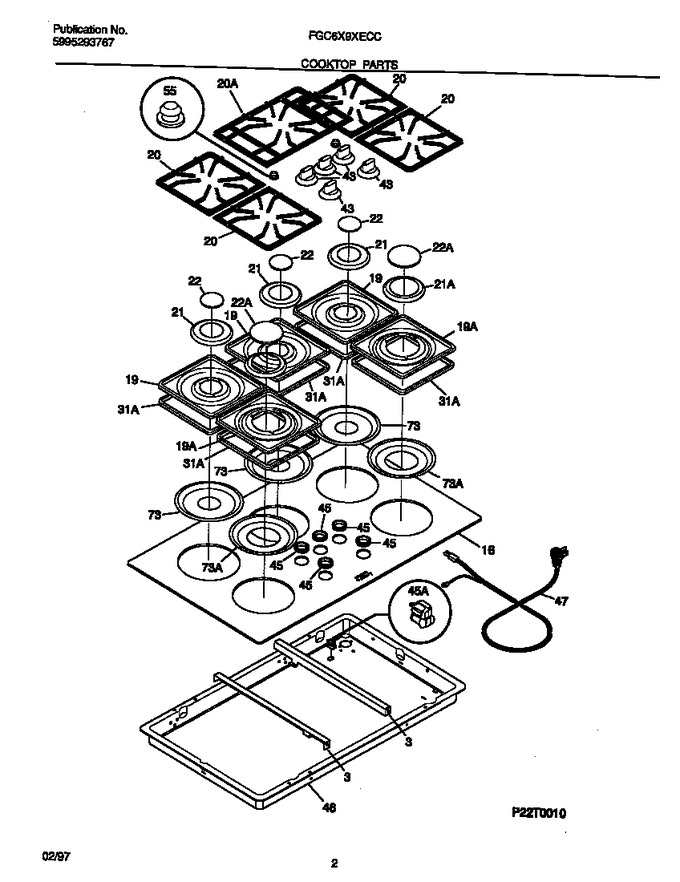

02 - Cooktop Parts


03 - Burner Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318043300		Support, Main Top, (2)		Appelez-nous	-
16	318079606		Main Top, Glass		Appelez-nous	-
19	318066911		Pan-burner, Large, Black, (2)				$ 191.94
19	318066901		Pan-burner, Black, (3)		Appelez-nous	-
20	318024900		Grate, (4)		Appelez-nous	-
20	318024800		Grate, Center, (1)		Appelez-nous	-
21	5303209009		Trim Ring, Black, (3)		Appelez-nous	-
21	5303311292		Trim Ring, Large, Black, (2)		Appelez-nous	-
22	316011008		Cap-burner, Black, Large, (2)		Appelez-nous	-
22	316011001		Cap-burner, Black, (3)		Appelez-nous	-
31	5303307931		Gasket, Pan		Appelez-nous	-
43	318099100		Knob,control ,black ,(5)				$ 123.62
45	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
45	5303307933		Bushing, Top Burner Knob		Appelez-nous	-
46	318077000		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
55	318096700		Spacer,center Grate		Appelez-nous	-
73	318057100		Deflector, Small, (3)		Appelez-nous	-
73	318057101		Deflector, Large, (2)		Appelez-nous	-
*13400	5303322267		Bracket-mounting, Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
