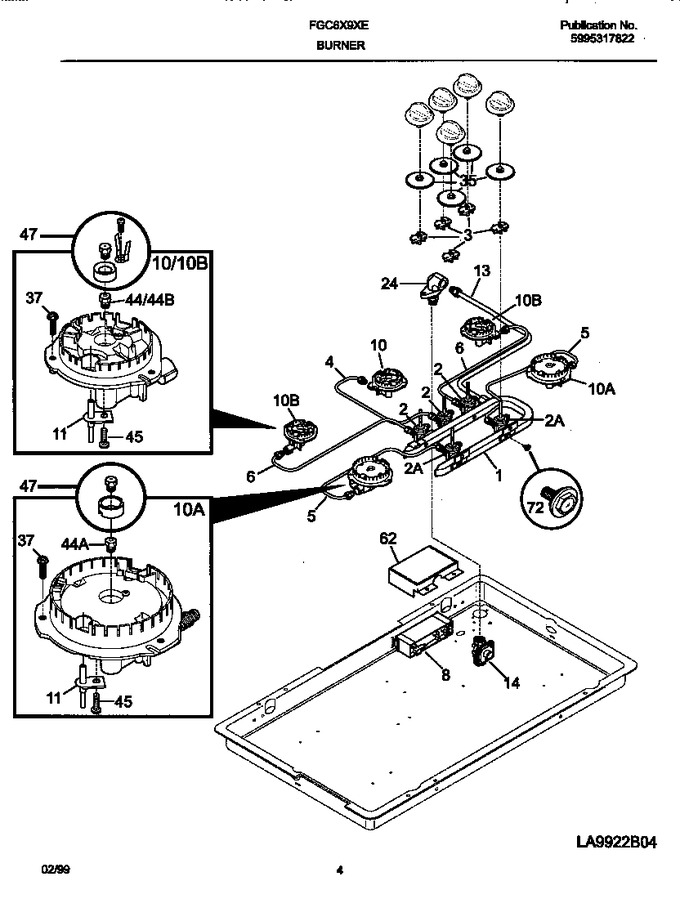

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318254906		Manifold Pipe   (Replaces: 318177500)			Immediately	$ 259.36
2	318087020		Valve-top Burner		Appelez-nous	-
2	5303935042		Valve-top Burners				$ 175.25
3	316032002		Switch-ignitor				$ 63.46
4	5303305456		Tube-burner		Appelez-nous	-
5	318054601		Tube-burner		Appelez-nous	-
6	318054600		Tube-burner		Appelez-nous	-
8	808608804		Spark Module   (Replaces: 318079000)			Immediately	$ 76.06
10	318055100		Burner-top,11000		Appelez-nous	-
10	318055010		Burner-top,6000		Appelez-nous	-
10	318055011		Burner-top,9100		Appelez-nous	-
11	316011200		Ignitor-top Burner			Immediately	$ 38.68
13	318054500		Connector Tube		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
24	318054000		Elbow Fitting		Appelez-nous	-
35	5303307978		Bushing-insulation		Appelez-nous	-
37	5303320671		Screw				$ 1.91
44	318088700		Orifice,9100		Appelez-nous	-
44	318088702		Orifice		Appelez-nous	-
44	318088701		Orifice,6000		Appelez-nous	-
45	316011100		Screw-ignitor				$ 3.41
47	318127401		Lp Kit		Appelez-nous	-
62	318077500		Cover, Spark Module		Appelez-nous	-
72	5303323141		Screw-valve		Appelez-nous	-
*23924	08011955		Screw,10-24 X 3/8			Immediately	$ 9.36
*23925	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
*23926	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*23927	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
