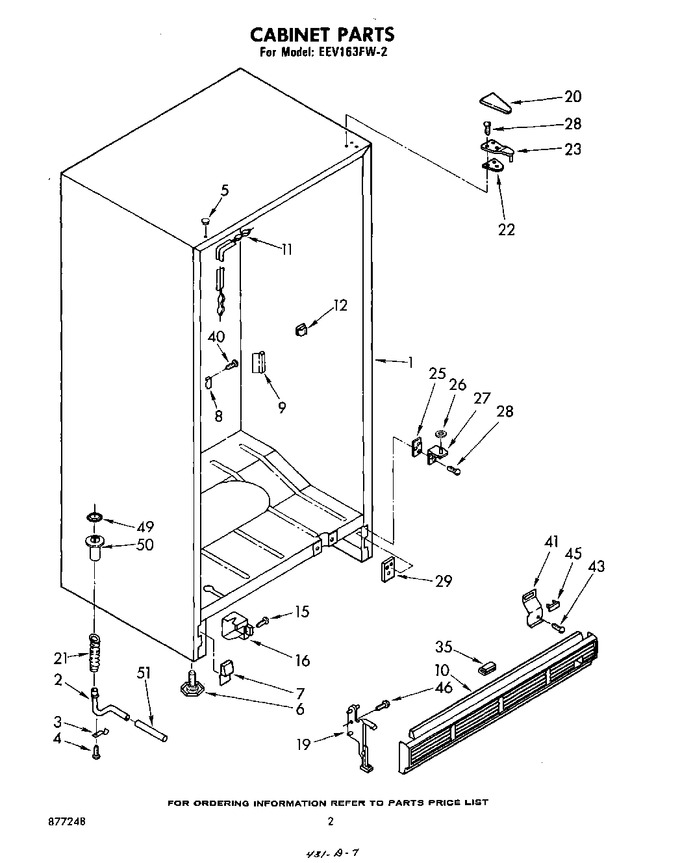

02 - Cabinet
03 - Door , Lit/optional
04 - Unit
05 - Liner
06 - Breaker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 842257 | Extension, Fitting |
|
- | |||||
| 3 | 841648 | Clip, Drain |
|
- | |||||
| 4 | 488845 | Screw, 8-32 X 1/2 |
|
- | |||||
| 5 | 989875 | Coffee |
|
- | |||||
| 5 | 989195 | Hole Plug (almond) |
|
- | |||||
| 5 | 985874 | Copper |
|
- | |||||
| 5 | 985873 | Avocado |
|
- | |||||
| 5 | 842034 | Gold |
|
- | |||||
| 5 | 842031 | Hole Plug (white) |
|
- | |||||
| 5 | 989877 | New Avocado |
|
- | |||||
| 5 | 989876 | Golden Harvest |
|
- | |||||
| 6 | W11117769 | Leveler (2) (Replaces: 848392) |
|
Immediately | $ 16.61 | ||||
| 7 | 839178 | Filler, Grille |
|
- | |||||
| 8 | 991992 | Bracket, Strike |
|
- | |||||
| 9 | 839865 | Cover, Strike |
|
- | |||||
| 10 | 981093 | Grille |
|
- | |||||
| 11 | 851608 | Heater, Stile |
|
- | |||||
| 12 | 488295 | Clip (repair) |
|
- | |||||
| 15 | WP488729 | Screw, 8 X 1/2 (Replaces: 486993) |
|
Immediately | $ 7.01 | ||||
| 16 | 549947 | Box, Junction |
|
- | |||||
| 19 | 844614 | Support, Grille (2) |
|
- | |||||
| 20 | 985877 | Cover, Hinge (avocado) |
|
- | |||||
| 20 | 842010 | Cover, Hinge (white) |
|
- | |||||
| 20 | 842014 | Cover, Hinge (gold) |
|
- | |||||
| 20 | 989897 | Cover, Hinge (new Avocado) |
|
- | |||||
| 20 | 989895 | Cover, Hinge (coffee) |
|
- | |||||
| 20 | 989194 | Cover, Hinge (almond) |
|
- | |||||
| 20 | 985878 | Cover, Hinge (copper) |
|
- | |||||
| 20 | 989896 | Cover, Hinge (golden Harvest) |
|
- | |||||
| 21 | 842256 | Fitting, Drain |
|
- | |||||
| 22 | 836151 | Shim, Hinge |
|
- | |||||
| 23 | 842038 | Hinge, Top |
|
- | |||||
| 25 | 836196 | Shim, Hinge |
|
- | |||||
| 26 | WP487802 | Washer (Replaces: 488184) |
|
Immediately | $ 7.12 | ||||
| 27 | 836686 | Hinge (bottom) |
|
- | |||||
| 28 | 488949 | Screw (repair) |
|
- | |||||
| 28 | WP999367 | Screw, 10-32 X 3/4 (Replaces: 488948) |
|
$ 7.07 | |||||
| 29 | 836162 | Tap Plate |
|
- | |||||
| 35 | 546131 | Bumper (2) |
|
- | |||||
| 40 | WP489128 | Screw, 8-32 X .375 (Replaces: 488500) |
|
$ 9.79 | |||||
| 41 | 842250 | Bracket, Pilot Light |
|
- | |||||
| 43 | 488474 | Screw, 8-32 X 3/8 |
|
- | |||||
| 45 | 530584 | Light, Pilot |
|
- | |||||
| 46 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 49 | 835370 | Drain Cover |
|
- | |||||
| 50 | 934607 | Drain, Ferrule Cap |
|
- | |||||
| 51 | 842260 | Drain Hose |
|
- |
