SELECT A DIAGRAM

01 - Cover

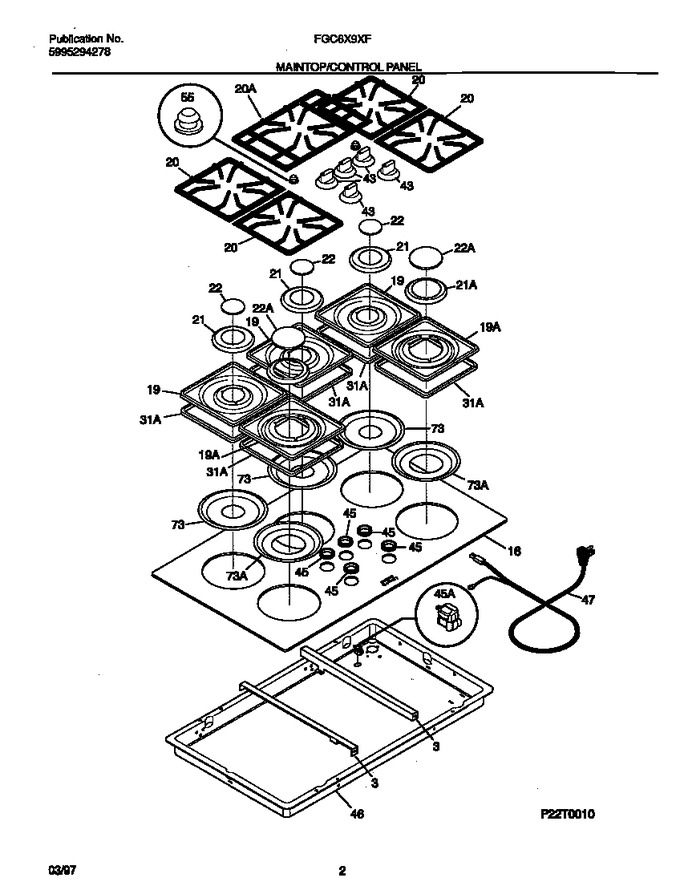

02 - Maintop/control Panel


03 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318043300		Support, Main Top, (2)		Appelez-nous	-
16	318079607		Main Top, White		Appelez-nous	-
19	318066913		Pan-burner, Gray, Large, (2)				$ 120.49
19	318066903		Pan-burner, Gray, (4)		Appelez-nous	-
20	318024802		Grate, Center		Appelez-nous	-
20	318024902		Grate, (4)		Appelez-nous	-
21	318050500		Trim Ring, Gray, (3)		Appelez-nous	-
21	318050600		Trim Ring, Large, Gray, (2)		Appelez-nous	-
22	316011003		Cap-burner, Gray, Small, (2)		Appelez-nous	-
22	316011009		Cap-burner, Gray, Large, (2)		Appelez-nous	-
31	5303307931		Gasket, Pan		Appelez-nous	-
43	318099101		Knob-control, (5)		Appelez-nous	-
45	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
45	5303307933		Bushing, Top Burner Knob		Appelez-nous	-
46	318077000		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
55	318096700		Spacer,center Grate		Appelez-nous	-
73	318057100		Deflector, Small, (3)		Appelez-nous	-
73	318057101		Deflector, Large, (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
