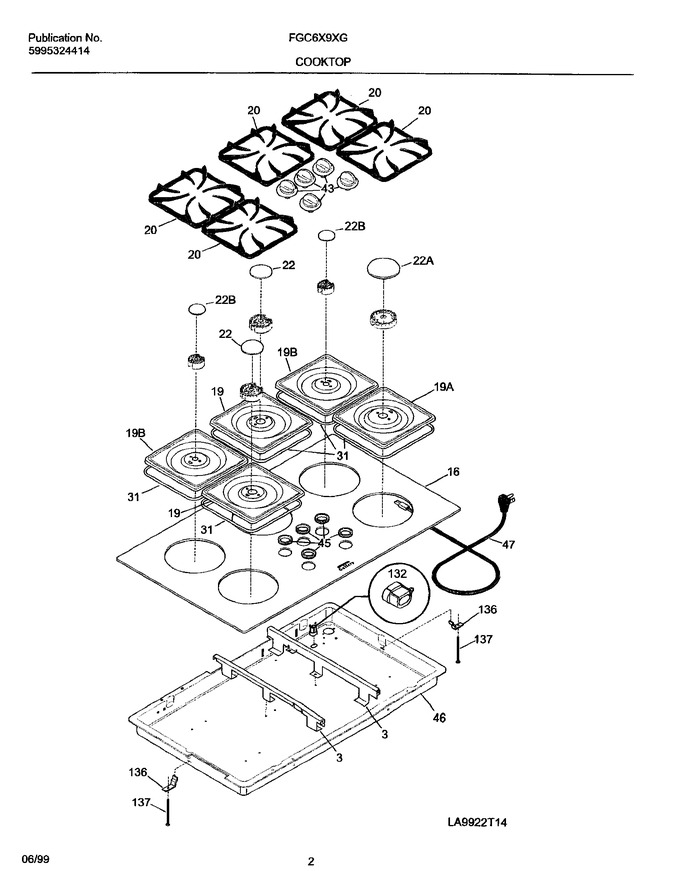

03 - Cooktop


05 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318171400		Support,glass		Appelez-nous	-
16	318079601		Glass & Support Assy/ass. Plaque & Support		Appelez-nous	-
19	318168114		Pan-burner,black				$ 151.68
20	318120105		Grate-black		Appelez-nous	-
22	316213500		Cap-burner,black   (Replaces: 318076410)				$ 43.23
31	318053901		Gasket-pan   (Replaces: 318053900)				$ 33.60
43	318016504		Knob-control, Black		Appelez-nous	-
45	318146200		Bushing		Appelez-nous	-
46	318077000		Burner Box		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw, 10-24 X 2 1/2				$ 14.13
19A	318168124		Pan-burner,black				$ 140.67
19B	318168104		Pan-burner,black				$ 155.93
22A	318076420		Cap-burner,black		Appelez-nous	-
22B	318076400		Cap-burner,black				$ 25.66
F47	5303303991		Cord-electric Power				$ 96.50
NI	5303300265		Screw, 8-18 X 1/2				$ 15.17
NI	5304403558		Screw, 10-16 X 1/4		Appelez-nous	-
NI	318052123		Wire Harness		Appelez-nous	-
