SELECT A DIAGRAM

01 - Cover


02 - Cooktop

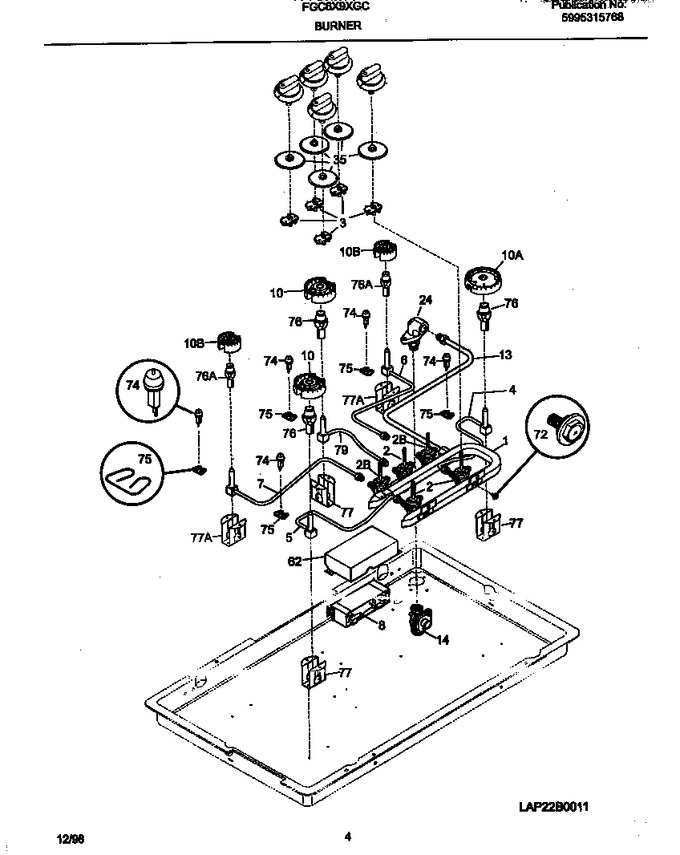

03 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318254906		Manifold Pipe   (Replaces: 318177500)			Immediately	$ 259.36
2	318087001		Valve-top Burner				$ 204.59
2	5303935042		Valve-top Burners				$ 175.25
3	316032002		Switch-ignitor				$ 63.46
4	318167705		Tube,burner				$ 180.71
5	318167704		Tube-burner				$ 70.04
6	318167706		Tube,burner				$ 223.26
7	318167713		Tube,burner				$ 178.61
8	808608804		Spark Module   (Replaces: 318079000)			Immediately	$ 76.06
10	318148000		Burner-top,small				$ 252.58
10	318148002		Burner-top,large				$ 144.64
10	318148001		Burner-top,center				$ 112.88
13	318054505		Connector Tube		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
24	318054000		Elbow Fitting		Appelez-nous	-
35	5303307978		Bushing-insulation		Appelez-nous	-
62	318160200		Cover,spark Module		Appelez-nous	-
72	5303323141		Screw-valve		Appelez-nous	-
74	318148700		Ignitor Grommet Assy				$ 62.19
75	318148800		Clip,electrode				$ 68.57
76	318167800		Small Mixing Tube				$ 78.33
76	318167801		Mid & Large Mixing Tube				$ 98.60
77	318112000		Bracket-burner Mtg				$ 51.14
77	318112010		Bracket-burner Mtg		Appelez-nous	-
79	318167712		Tube,burner				$ 201.29
*60242	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
*60243	318052100		Harness-wiring		Appelez-nous	-
*60244	318127704		Lp Kit		Appelez-nous	-
*60245	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
