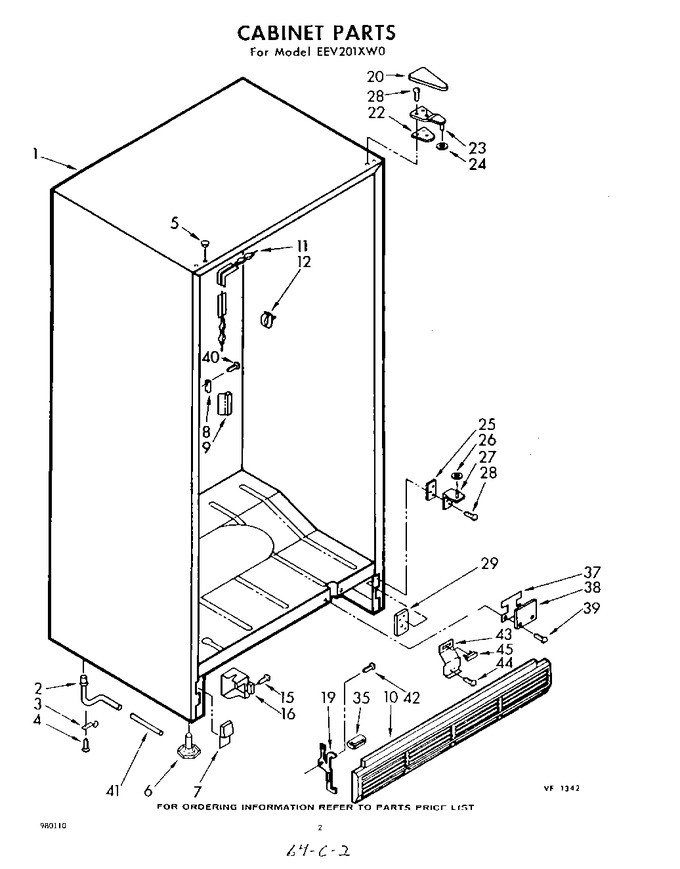

02 - Cabinet


03 - Liner


04 - Door , Lit/optional


05 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	842257		Extension, Fitting		Appelez-nous	-
3	841648		Clip, Drain		Appelez-nous	-
4	488845		Screw		Appelez-nous	-
5	842033		Plug, Hole (3) (avocado)		Appelez-nous	-
5	842031		Plug, Hole (3) (white)		Appelez-nous	-
5	842034		Plug, Hole (3) (gold)		Appelez-nous	-
6	836392		Leveler (2)		Appelez-nous	-
7	839178		Filler, Grille		Appelez-nous	-
8	839803		Strike, Lock		Appelez-nous	-
9	839865		Cover, Strike Lock		Appelez-nous	-
10	981918		Grille, Exterior		Appelez-nous	-
11	851506		Heater, Stile		Appelez-nous	-
12	851039		Fastener, Wire		Appelez-nous	-
15	WP488729		Screw   (Replaces: 486993)			Immediately	$ 7.01
16	549947		Box, Junction		Appelez-nous	-
19	844614		Support, Grille		Appelez-nous	-
20	842014		Cover, Hinge (gold)		Appelez-nous	-
20	842011		Cover, Hinge (avocado)		Appelez-nous	-
20	842010		Cover, Hinge (white)		Appelez-nous	-
22	836151		Shim, Hinge		Appelez-nous	-
23	842038		Hinge Assembly, Top		Appelez-nous	-
24	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.12
25	836196		Shim, Hinge		Appelez-nous	-
26	WP487802		Washer   (Replaces: 488184)			Immediately	$ 7.12
27	836686		Hinge (bottom)		Appelez-nous	-
28	WP999367		Screw   (Replaces: 488690)				$ 7.07
29	836162		Tap Plate		Appelez-nous	-
35	546131		Bumper		Appelez-nous	-
37	512733		Bracket		Appelez-nous	-
38	658195		Plate, Serial		Appelez-nous	-
39	WP486754		Screw   (Replaces: 486117)				$ 6.75
40	WP489128		Screw   (Replaces: 488500)				$ 9.79
41	842260		Drain Hose		Appelez-nous	-
42	W11624204		Screw, 8 X 3/8   (Replaces: 486194)				$ 12.62
43	842250		Bracket, Pilot Light		Appelez-nous	-
44	488474		Screw, 8-32 X 3/8		Appelez-nous	-
45	531158		Pilot Light (alternate)		Appelez-nous	-
45	530584		Light, Pilot		Appelez-nous	-
