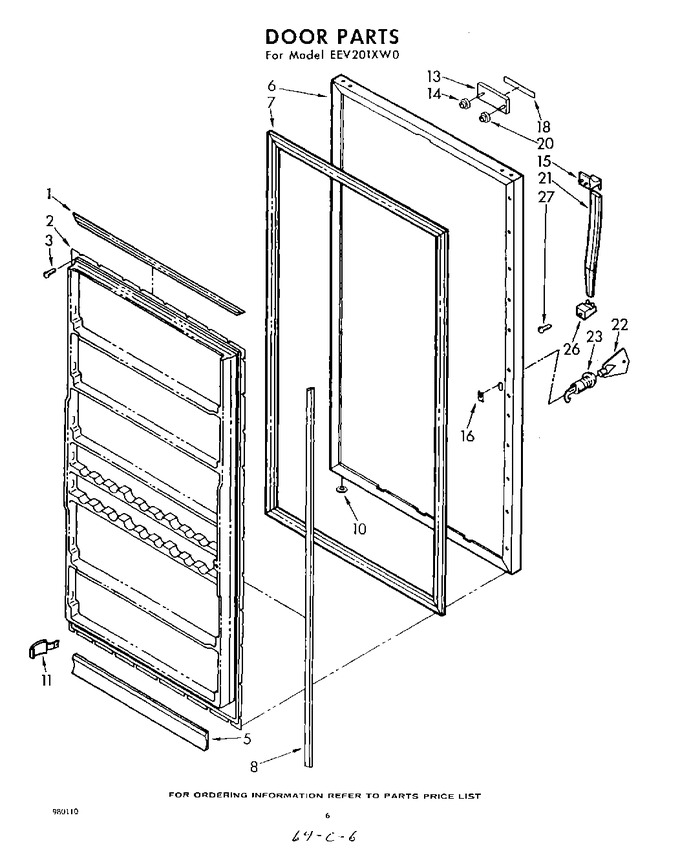

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	836118		Retainer, Gasket (2)		Appelez-nous	-
2	981943		Panel, Interior Door		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 12.62
5	984900		Trim, Shelf (5)		Appelez-nous	-
6	984662		Panel, Exterior Door (white)		Appelez-nous	-
6	984664		Panel, Exterior Door (avocado)		Appelez-nous	-
6	984665		Panel, Exterior Door (gold)		Appelez-nous	-
7	2188438A		Gasket, Magnetic   (Replaces: 839858)		Appelez-nous	-
8	836120		Retainer, Side (2)		Appelez-nous	-
10	534927		Plug, Hole (2)		Appelez-nous	-
11	WP849996		End, Support & Trim   (Replaces: 849996)				$ 6.81
13	837577		Escutcheon, Nameplate		Appelez-nous	-
14	659677		Clip, Tubular		Appelez-nous	-
15	982947		Handle, Top		Appelez-nous	-
16	983465		Clip, Lock		Appelez-nous	-
18	842211		Insert, Nameplate		Appelez-nous	-
20	659676		Clip, Tubular		Appelez-nous	-
21	982978		Handle, Center		Appelez-nous	-
22	WP842177		Key   (Replaces: 842177)				$ 7.29
23	983464		Lock Assembly		Appelez-nous	-
26	982948		End, Handle		Appelez-nous	-
27	980110		List, Parts		Appelez-nous	-
27	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
27	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
27	606755		Bag, Insulation (36-5/8`` X 46``)				$ 70.61
27	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 99.82
27	799833		Kit, Evaporator (repair Alum. Epoxy)		Appelez-nous	-
27	799832		Kit, Porcelain Repair		Appelez-nous	-
27	984937		Manual, Owner`s		Appelez-nous	-
27	656493		Booklet, Freezer		Appelez-nous	-
27	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
27	488818		Screw				$ 42.82
27	350942		Primer, White (12 Oz. Spray Can)   (Replaces: 206922)				$ 80.69
27	206925		Leveler, Enamel (12 Oz. Spray Can)		Appelez-nous	-
27	285006		Enamel, Black (12 Oz. Spray Can)   (Replaces: 799339)			Immediately	$ 51.34
27	350930		Enamel, White (12 Oz. Spray Can)   (Replaces: 799343)			Immediately	$ 34.39
27	72021		Kit, Brush Touch-up (avocado) (base)		Appelez-nous	-
27	72025		Kit, Brush Touch-up (avocado) (hi-lite)		Appelez-nous	-
27	1N4004		Kit, Brush Touch-up (harvest Gold) (base)   (Replaces: 72094)		Appelez-nous	-
27	72095		Kit, Brush Touch-up (harvest Gold) (hi-lite)		Appelez-nous	-
27	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
27	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
27	799351		Thinner, Blend (1 Gal.)		Appelez-nous	-
27	798954		Enamel, Avocado (base Coat) (1 Qt. Uncut)		Appelez-nous	-
27	798955		Enamel, Avocado (hi-lite) (shaded Area) (1 Pt. Uncut)		Appelez-nous	-
27	833503		Enamel, Harvest Gold (base Coat) (1 Qt. Uncut)		Appelez-nous	-
27	833504		Enamel, Harvest Gold (hi-lite) (shaded Area) (1 Pt. Uncut)		Appelez-nous	-
27	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 73.92
27	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 208.40
27	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
27	511881		Lacquer, Bright Aluminum (12 Oz. Spray Can)				$ 278.35
