SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

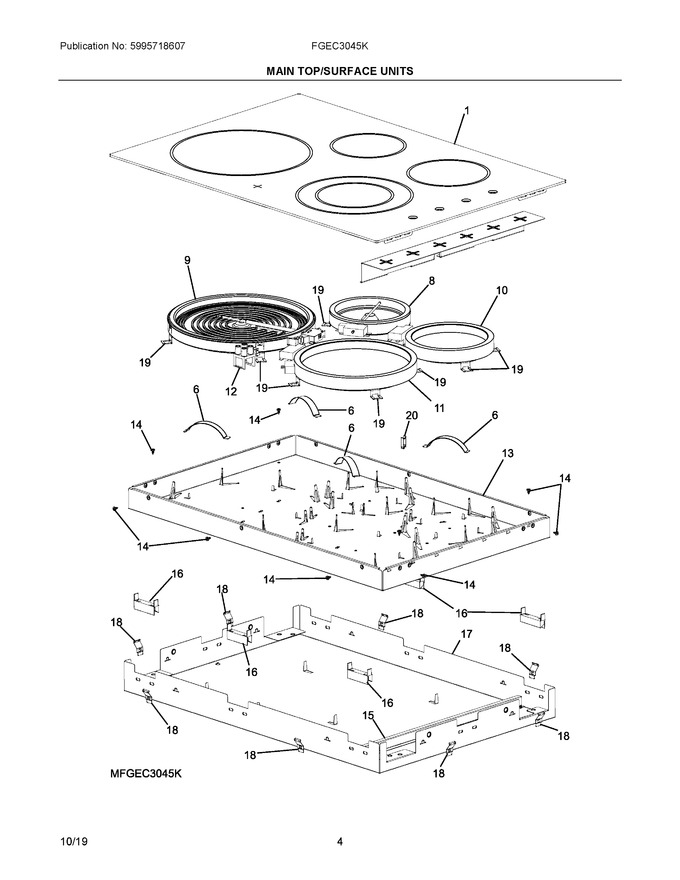

03 - Main Top/surface Units


04 - Wiring Diagram


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305379368		Maintop Assembly, Glass/steel, Black				$ 676.67
6	387372900		Spring, Surface Element				$ 15.17
8	140283001026		Element, Surface, 6", 1200w   (Replaces: 374063522)			Immediately	$ 73.17
9	389087201		Element, Surface, 12", 2700w				$ 307.90
10	318178104		Element, Surface, 7?, 1500w				$ 403.45
11	8583890874024		Element, Dual Surface, 6/9", 1600/3000w   (Replaces: 389087401)		Appelez-nous	-
12	387812004		Light Assembly, Indicator, Hot Surface   (Replaces: 387812000)				$ 50.32
13	387774200		Box, Inner		Appelez-nous	-
14	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
15	387683500		Support, Burner Box		Appelez-nous	-
16	387627600		Spacer, Burner Box, Plastic				$ 12.71
17	387559400		Box, Burner, Outer		Appelez-nous	-
18	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
19	387683300		Bracket, Surface Element			Immediately	$ 13.42
20	387727700		Retainer, Wiring		Appelez-nous	-
NI	387627700		Bracket, Retainer, Cooktop				$ 24.10
NI	5304521295		Harness, Wiring, Main   (Replaces: 387861400)				$ 267.20
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	305351200		Rivet, 3, 2 X 6		Appelez-nous	-
NI	131202300		Screw   (Replaces: 305376102)			Immediately	$ 13.46
NI	305309606		Screw				$ 11.34
NI	305376101		Screw, Bracket, Surface Element		Appelez-nous	-
NI	318078564		Box & Wires Assy				$ 207.32

    View Diagram in Separate Window       Print Part List
