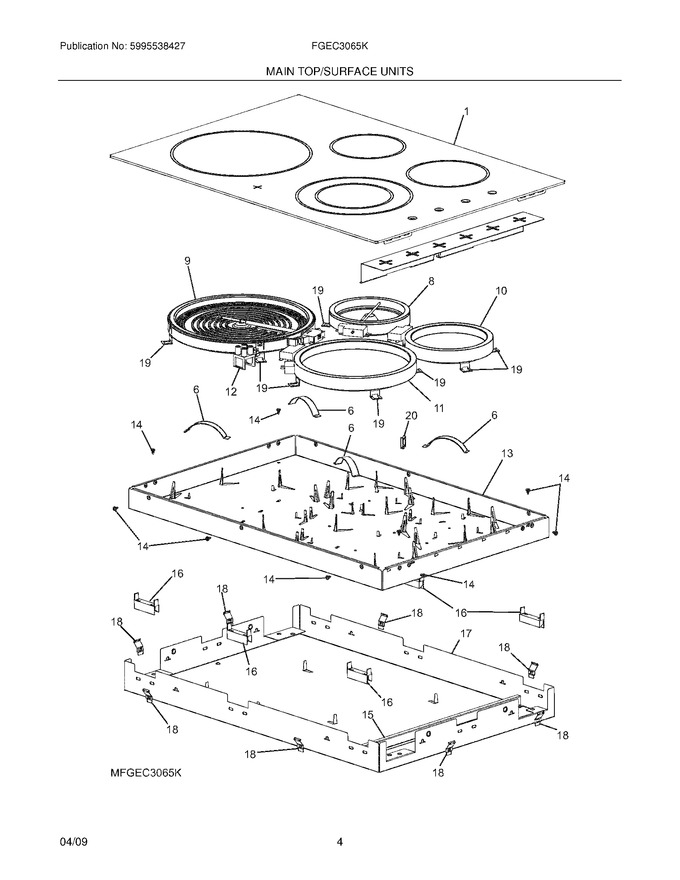

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305379363		Maintop Assembly,glass/steel ,black/stainless				$ 590.05
6	387372900		Spring,surface Element				$ 15.17
13	387774200		Box,inner		Appelez-nous	-
14	131243700		Screw,b4 ,2 X 9 ,5   (Replaces: 330447900)				$ 3.36
15	387683500		Support,burner Box		Appelez-nous	-
16	387627600		Spacer,burner Box ,plastic				$ 12.71
17	387559400		Box,burner ,outer		Appelez-nous	-
18	387174602		Bracket,spring ,cooktop Mtg.				$ 5.67
19	387683300		Bracket,surface Element			Immediately	$ 13.42
20	387727700		Retainer,wiring		Appelez-nous	-
F10	318178104		Element,surface ,7`` ,1500w				$ 403.45
F11	8583890874024		Element,dual Surface ,6/9`` ,1600/3000w   (Replaces: 389087401)		Appelez-nous	-
F12	387812004		Light Assembly,indicator ,hot Surface   (Replaces: 387812000)				$ 50.32
F8	140283001026		Element,surface ,6`` ,1200w   (Replaces: 374063522)			Immediately	$ 73.17
F9	316282101		Element,dual Surface ,9/12`` ,1700/2700w   (Replaces: 389087301)			Immediately	$ 283.03
FNI	318078564		Box & Wires Assy				$ 207.32
FNI	387861500		Harness,wiring ,main		Appelez-nous	-
NI	5303323140		Screw,ground   (Replaces: 305452800)		Appelez-nous	-
NI	305351200		Rivet,3 ,2 X 6		Appelez-nous	-
NI	387627700		Bracket,retainer ,cooktop				$ 24.10
NI	131202300		Screw   (Replaces: 305376102)			Immediately	$ 13.46
NI	305309606		Screw				$ 11.34
NI	305376101		Screw,bracket ,surface Element		Appelez-nous	-
