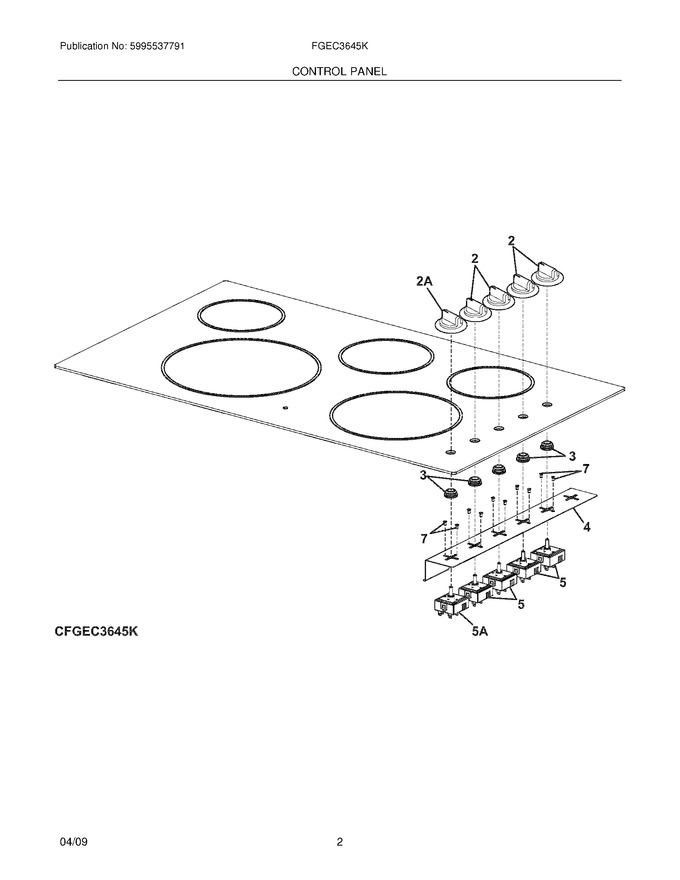

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Controls
05 - Maintop
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 316545117 | Knob,control ,white ,single |
|
$ 49.29 | |||||
| 3 | 387316100 | Bushing,knob ,sealing |
|
$ 13.46 | |||||
| 4 | 387559700 | Bracket,support ,switch Mtg. |
|
- | |||||
| 7 | 5304536454 | Screw,switch Mtg. ,m4 X 7 (Replaces: 319224001) |
|
$ 2.98 | |||||
| 2A | 316545115 | Knob,control ,white ,dual |
|
$ 41.63 | |||||
| F5 | 5304526190 | Switch,surface Element (Replaces: 305458905) |
|
Immediately | $ 90.50 | ||||
| F5A | 5304527965 | Switch,surface Element ,dual (Replaces: 305458904) |
|
Immediately | $ 100.56 |
