SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section

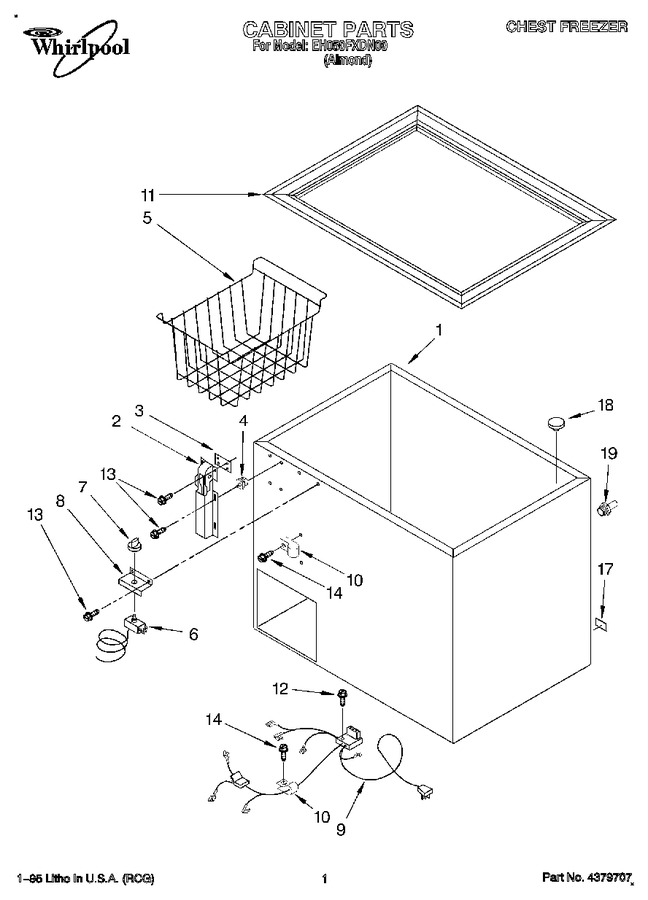

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	4356555		Hinge Assembly		Appelez-nous	-
3	1-17548-006		Hinge Spacer   (Replaces: 4356369)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356346		Wire Basket		Appelez-nous	-
6	4356323		Thermostat		Appelez-nous	-
7	4356324		Thermostat, Knob		Appelez-nous	-
8	4356557		Thermostat, Control Bracket		Appelez-nous	-
9	4356495		External, Wiring Harness		Appelez-nous	-
10	488946		Plastic, Clip (2)   (Replaces: 4356328)				$ 18.41
11	4356459		Breaker Strip		Appelez-nous	-
12	487980		Screw		Appelez-nous	-
13	4356491		Screw		Appelez-nous	-
14	W11233072		Screw   (Replaces: 4356496)			Immediately	$ 12.62
17	4356556		Drain Cap		Appelez-nous	-
18	4356512		Drain Cap, Inner		Appelez-nous	-
19	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
19	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
19	W11663505		Adapter, Drain   (Replaces: 4356481)				$ 15.45
19	798883		Enamel (almond) (1 Qt. Uncut)		Appelez-nous	-
19	4356489		Rivet Kit (60)		Appelez-nous	-
	LIT2165301		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
