SELECT A DIAGRAM

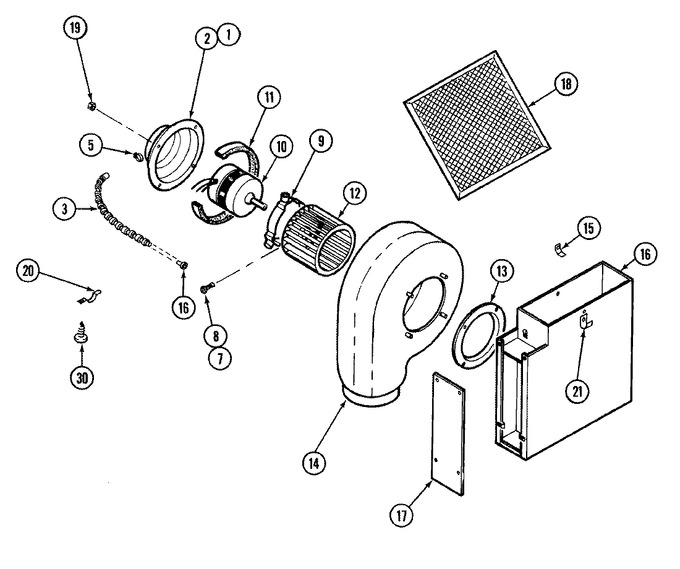

01 - Blower Motor Assembly


02 - Body


03 - Control Panel


04 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE81-03521A		Motor Cover Assembly   (Replaces: 700027)	10			$ 208.41
1	W10124350		Not Required Part Or See Note	11	Appelez-nous	-
2	708863		Cover,motor	10	Appelez-nous	-
2	Y704968		Cover, Motor	11	Appelez-nous	-
3	W10124350		Not Required Part Or See Note Conduit	11	Appelez-nous	-
3	Y707758		Conduit	10	Appelez-nous	-
4	707766		Connector	10	Appelez-nous	-
5	715780		Clamp, Cable	10	Appelez-nous	-
6	Y707335		Clip	10	Appelez-nous	-
7	707161		Nut	10	Appelez-nous	-
8	Y707402		Screw	10	Appelez-nous	-
9	Y707393		Band, Motor	10	Appelez-nous	-
9	707407		Screw	10			$ 6.42
9	WP71003558		Isolator   (Replaces: Y708926)	10			$ 11.47
10	707704K		Motor   (Replaces: Y707704)	10		Immediately	$ 352.01
11	Y715957		Foam, Urethane	10	Appelez-nous	-
12	WPY707985		Wheel, Blower   (Replaces: Y707985)	10		Immediately	$ 145.55
12	712311		Bushing	10	Appelez-nous	-
13	702889		Locknut Cap, W/nylon Insert	10	Appelez-nous	-
13	Y702295		Ring, Inlet	10	Appelez-nous	-
14	712008		Scroll, Blower Assy.	10	Appelez-nous	-
15	Y707688		Retainer, Filter	10	Appelez-nous	-
15	WP71001171		Screw   (Replaces: Y701379)	10			$ 6.26
16	701958		Clip, Tinnerman	10	Appelez-nous	-
16	WPW10253196		Screw   (Replaces: Y707113)	10			$ 3.76
16	Y701840		Plenum	11	Appelez-nous	-
16	712434		Plenum	10	Appelez-nous	-
17	WP59002061		Screw   (Replaces: Y707172)	10			$ 6.98
17	Y707831		Clip	10	Appelez-nous	-
17	Y700464		Plate, Cover	10	Appelez-nous	-
18	WP707929		Filter, Grease   (Replaces: 707929)	10		Immediately	$ 44.51
19	WPY707702		Locknut   (Replaces: Y707702)	10		Immediately	$ 6.26
20	WP71001171		Screw   (Replaces: Y707745)	10			$ 6.26
20	712310		Tinnerman	10	Appelez-nous	-
21	Y704761		Ring, Restrictor	11	Appelez-nous	-
21	Y704762		Retainer	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
