SELECT A DIAGRAM

01 - Cover

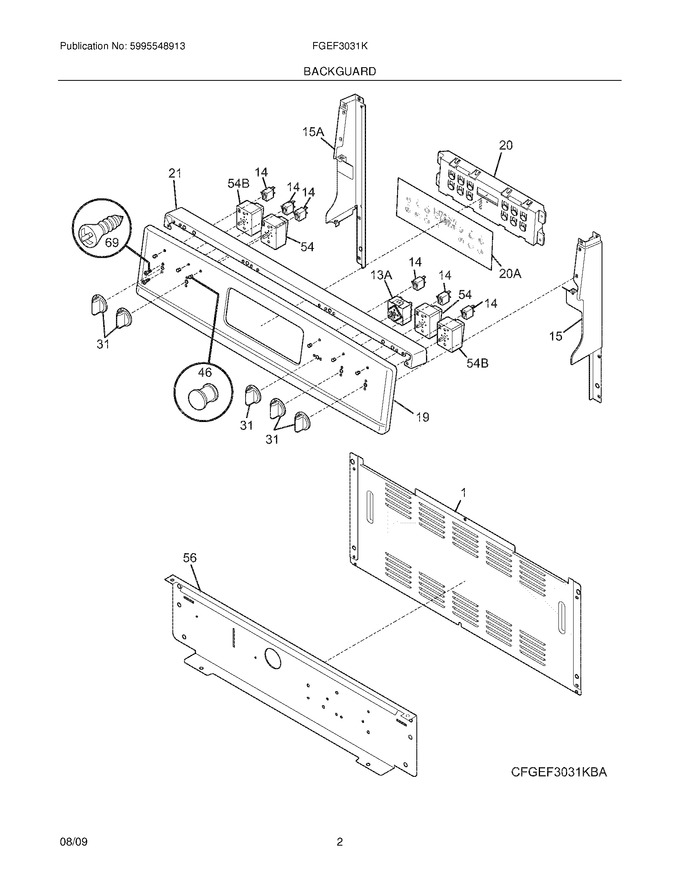

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316557600		Shield,rear Wall				$ 70.04
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316546706		Cap,backguard ,bisque ,rh End		Appelez-nous	-
19	316572421		Panel,backguard ,bisque		Appelez-nous	-
21	316546603		Cap,backguard ,bisque ,top		Appelez-nous	-
31	316544210		Knob,control ,bisque ,(5)		Appelez-nous	-
46	316557300		Lens-light/lamp,indicator ,clear			Immediately	$ 16.77
54	316436000		Switch,infinite ,small Element			Immediately	$ 80.34
56	316234014		Shield,backguard ,bisque ,inner		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
15A	316546707		Cap,backguard ,bisque ,lh End		Appelez-nous	-
20A	316419340		Overlay,clock ,bisque ,es330		Appelez-nous	-
F13A	5304508926		Switch,infinite ,warmer   (Replaces: 316095503)			Immediately	$ 84.18
F20	316418300		Clock/timer,electronic ,es330		Appelez-nous	-
F54B	316436001		Switch,infinite ,large Element			Immediately	$ 51.68
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
