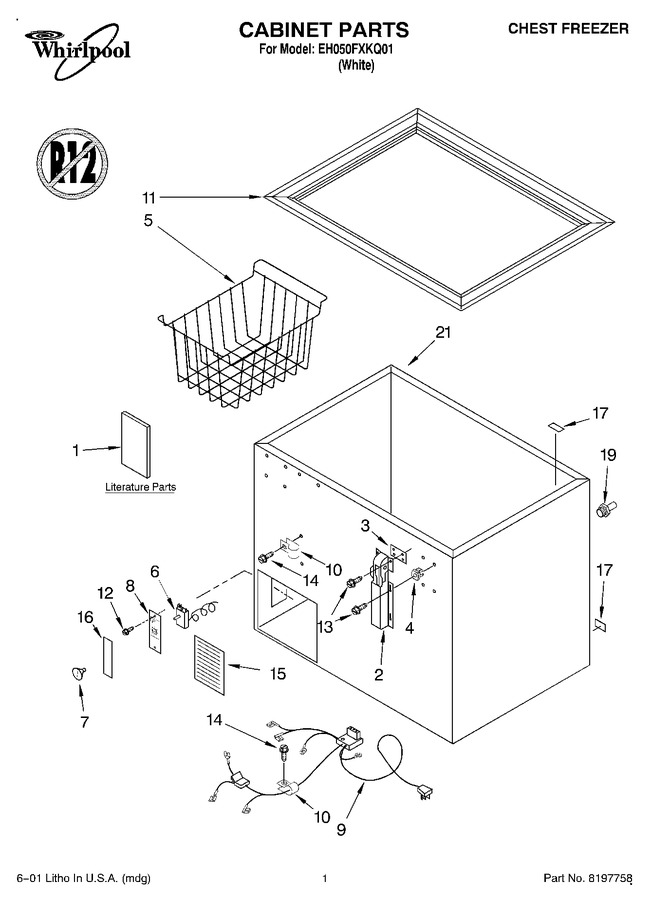

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4356739		Literature Parts (owner`s Manual)		Appelez-nous	-
1	LIT4356789		Literature Parts (energy Label)		Appelez-nous	-
2	4356745		Hinge Assembly		Appelez-nous	-
3	1-17548-006		Hinge Spacer   (Replaces: 4356463)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356746		Wire Basket		Appelez-nous	-
6	WP4-35940-001		Thermostat   (Replaces: 4356773)				$ 148.16
7	4356788		Thermostat, Knob		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 4356679)		Appelez-nous	-
9	4356588		External, Wiring Harness		Appelez-nous	-
10	488946		Plastic, Clip (2)   (Replaces: 4356643)				$ 18.41
11	4356681		Breaker Strip		Appelez-nous	-
12	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
13	4356491		Screw		Appelez-nous	-
14	W11233072		Screw   (Replaces: 4356496)			Immediately	$ 12.62
15	4356712		Access Panel		Appelez-nous	-
16	4356584		Insert, Control		Appelez-nous	-
17	4356713		Drain Cap		Appelez-nous	-
19	W11663505		Adapter, Drain   (Replaces: 4356747)				$ 15.45
21	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
21	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
21	4356703		Rivet Kit (60)				$ 43.62
21	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
21	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
