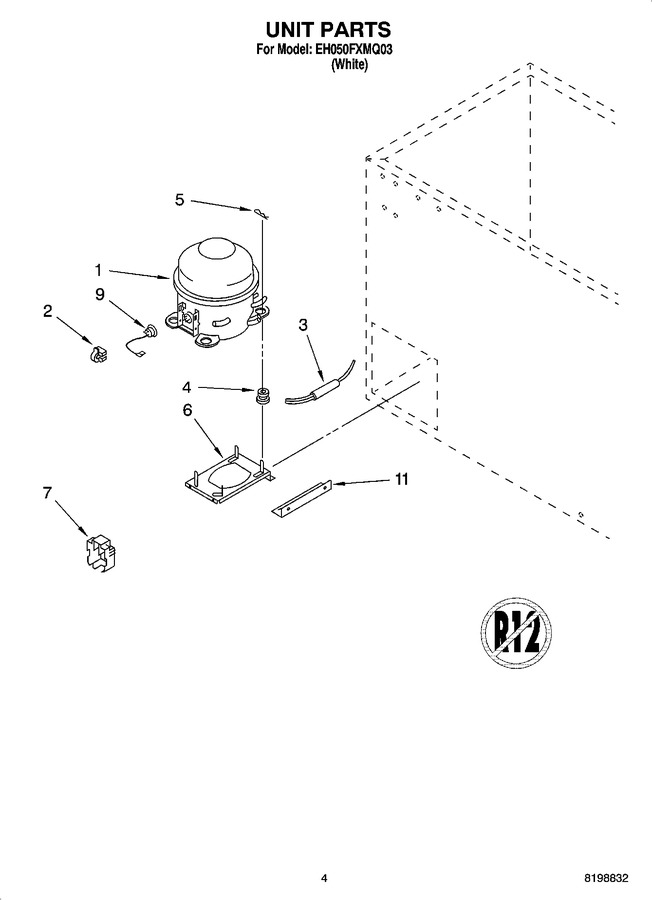

03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4356715 | Compressor (includes Items 2, 3, 4, 5, 7 & 9) |
|
- | |||||
| 2 | 4356716 | Relay |
|
$ 96.72 | |||||
| 3 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 9.64 | ||||
| 4 | 4356335 | Grommet, Mounting Compressor |
|
- | |||||
| 5 | 4356336 | Clip, Hitch Pin |
|
- | |||||
| 6 | 4356680 | Base, Compressor |
|
- | |||||
| 7 | WP2162358 | Cover (Replaces: 4356599) |
|
$ 81.68 | |||||
| 9 | 2264602 | Overload (Replaces: 4356717) |
|
$ 140.02 | |||||
| 11 | 3-81556-001 | Brace (Replaces: 4356720) |
|
- |
