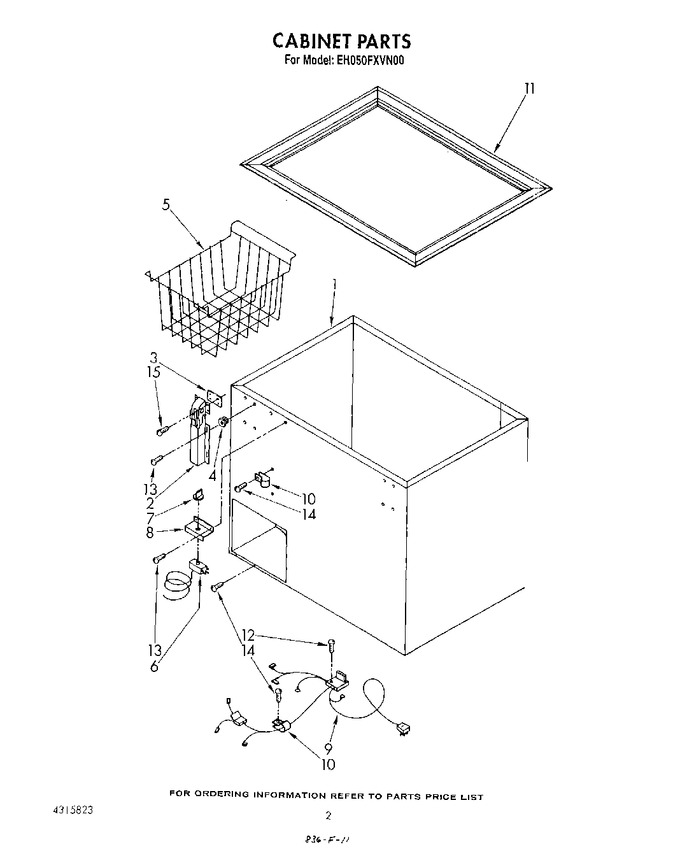

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 4356345 | Hinge Assembly |
|
- | |||||
| 3 | 1-17548-006 | Hinge, Spacer (Replaces: 4356320) |
|
$ 18.64 | |||||
| 4 | 4356321 | Grommet, Plastic |
|
$ 11.72 | |||||
| 5 | 4356346 | Wire Basket |
|
- | |||||
| 6 | 4356323 | Thermostat |
|
- | |||||
| 7 | 4356324 | Thermostat, Knob |
|
- | |||||
| 8 | 4356325 | Thermostat, Control Bracket |
|
- | |||||
| 9 | 4356347 | External, Wiring Harness |
|
- | |||||
| 10 | 488946 | Plastic, Clip (2) (Replaces: 4356328) |
|
$ 18.41 | |||||
| 11 | 4356343 | Breaker Strip |
|
- | |||||
| 12 | 487980 | Screw |
|
- | |||||
| 13 | WP308685 | Screw (Replaces: 308685) |
|
Immediately | $ 7.08 | ||||
| 14 | WP488787 | Screw (Replaces: 488787) |
|
$ 9.52 | |||||
| 15 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 15 | 489181 | Screw |
|
- | |||||
| 15 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 15 | 350956 | Enamel, Almond (13 Oz. Spray Can) |
|
$ 46.30 | |||||
| LIT4315823 | Parts List |
|
- | ||||||
| LIT1114865 | Owner`s Manual |
|
- |
