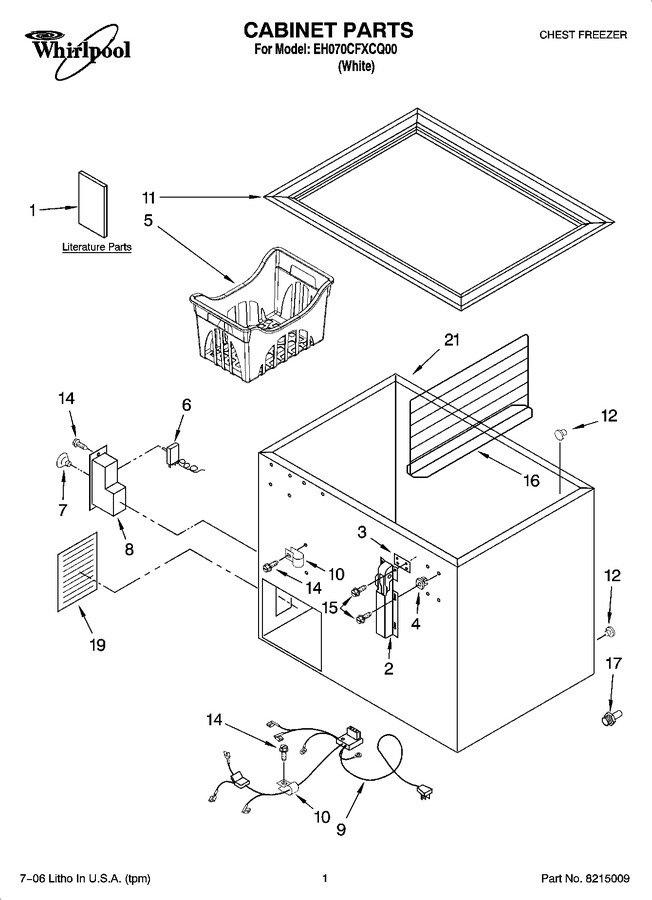

01 - Cabinet Parts
02 - Door Parts
03 - Unit Parts, Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210435 | Owners Manual |
|
- | |||||
| 1 | 4356793 | Energy Label |
|
- | |||||
| 2 | 4356723 | Hinge, Assembly |
|
$ 174.99 | |||||
| 3 | 1-17548-006 | Spacer, Hinge (Replaces: 4356463) |
|
$ 18.64 | |||||
| 4 | 4356321 | Plastic, Grommet |
|
$ 11.72 | |||||
| 5 | 8210434A | Basket, Plastic (Replaces: 8210434) |
|
$ 77.93 | |||||
| 6 | WP4-35940-001 | Thermostat (Replaces: 8210276) |
|
$ 148.16 | |||||
| 7 | 4356769 | Knob, Thermostat |
|
- | |||||
| 8 | W10682894 | Control Box (Replaces: 8210234) |
|
- | |||||
| 9 | 4-35130-004 | Harness, Wiring (Replaces: 4356743) |
|
$ 209.65 | |||||
| 10 | 488946 | Clip (Replaces: 4356643) |
|
$ 18.41 | |||||
| 11 | 4356632 | Breaker Strip |
|
- | |||||
| 12 | 4356456 | Drain, Cap |
|
- | |||||
| 14 | 3-24004-049 | Screw (Replaces: 4356583) |
|
- | |||||
| 15 | 4356491 | Screw |
|
- | |||||
| 16 | 4356731 | Divider (optional) |
|
- | |||||
| 17 | W11663505 | Adaptor, Drain (Replaces: 4356481) |
|
$ 15.45 | |||||
| 19 | 4356622 | Access Panel |
|
$ 70.79 |
