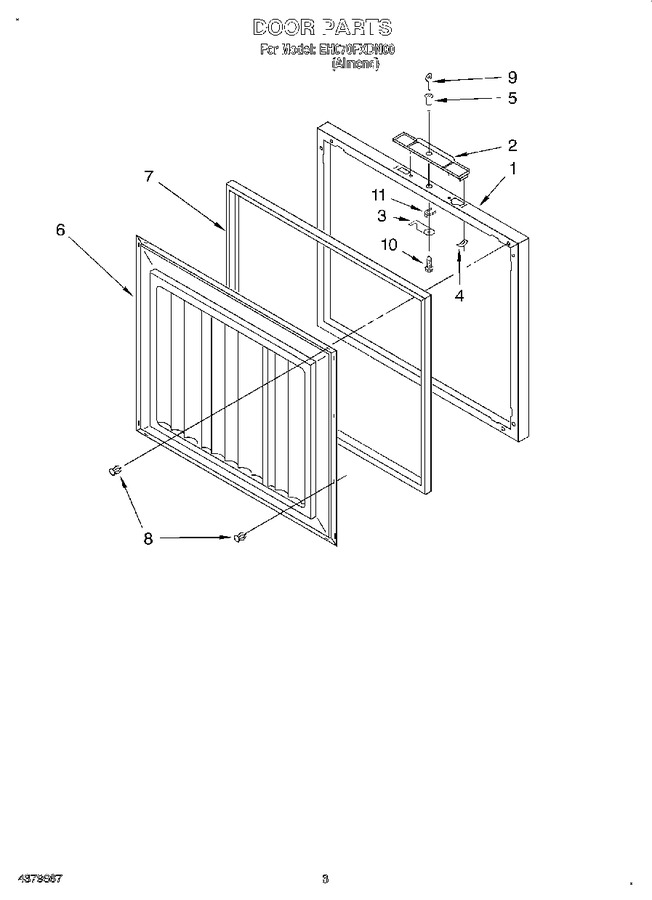

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4356523 | Exterior Door Panel (includes Insulation) (without Lock) |
|
- | |||||
| 1 | 4356569 | Exterior Door Panel (includes Insulation) (with Lock) |
|
- | |||||
| 2 | 4356533 | Handle (with Lock) |
|
- | |||||
| 2 | 4356522 | Handle (without Lock) |
|
- | |||||
| 3 | 2-35195-002 | Hook Bolt, Lock (lock Models Only) (Replaces: 4356303) |
|
$ 57.10 | |||||
| 4 | 4356306 | Clip, Handle Oblong |
|
$ 7.36 | |||||
| 5 | 4356534 | Lock Kit (includes Items 3, 9, 10 & 11) (lock Models Only) |
|
- | |||||
| 6 | 4356524 | Interior Door Panel (without Lock) |
|
- | |||||
| 6 | 4356539 | Interior Door Panel (with Lock) |
|
- | |||||
| 7 | 4356525 | Gasket |
|
- | |||||
| 8 | 4356317 | Plastic, Mounting Clip |
|
- | |||||
| 9 | 4356485 | Key (lock Models Only) |
|
- | |||||
| 10 | W11233072 | Screw (lock Models Only) (Replaces: 4356492) |
|
Immediately | $ 12.62 | ||||
| 11 | 4356493 | Clip (lock Models Only) |
|
- |
