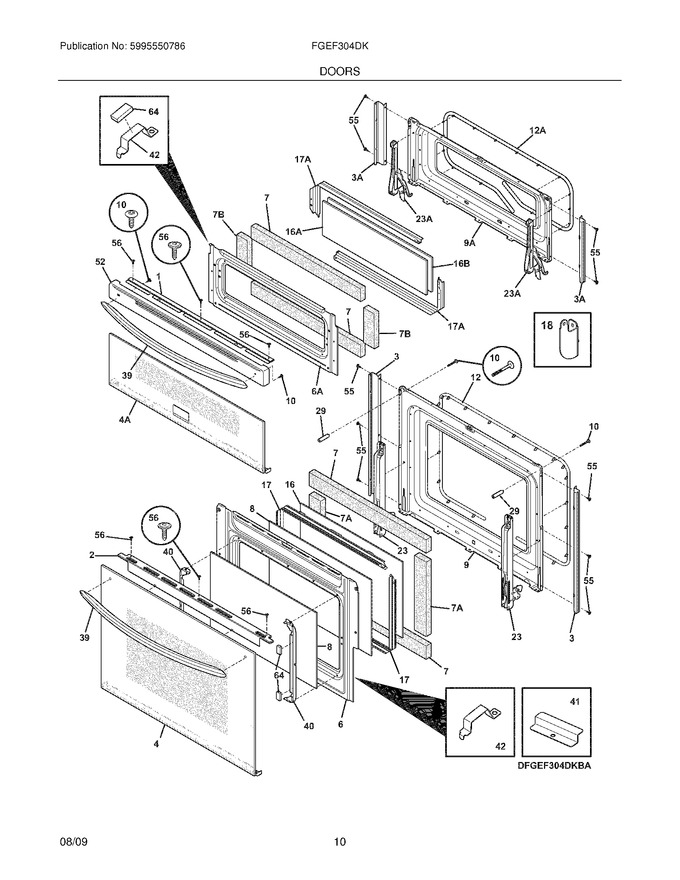

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Maintop


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318562701		Trim,top ,black ,upper Door		Appelez-nous	-
2	318260227		Trim,oven Door ,black ,upper				$ 55.70
3	318301412		Trim,lower Door ,black				$ 32.71
4	318304154		Door Assembly,glass ,black ,lower Oven ,w/trim		Appelez-nous	-
6	318260522		Baffle,door		Appelez-nous	-
7	318372016		Insulation,door ,(2)   (Replaces: 318372002)				$ 17.72
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318259665		Liner,oven Door		Appelez-nous	-
10	5304453223		Screw,handle Mtg ,10-14 X 1.82 ,(2)			Immediately	$ 13.19
12	318053120		Seal,oven Door ,lower   (Replaces: 318053130)			Immediately	$ 159.62
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,lower ,(2)   (Replaces: 318264710)				$ 72.05
18	316547900		Link,door ,(2) ,auto Rack				$ 20.56
23	318567107		Hinge,oven Door ,(2)				$ 63.89
29	318014405		Spacer,door		Appelez-nous	-
39	316544500		Handle,door ,black				$ 122.10
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318304208		Trim,door ,black ,upper		Appelez-nous	-
55	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
10A	5304453593		Screw,handle Mtg.				$ 10.53
12A	318053152		Seal,oven Door ,upper				$ 89.57
16A	318212211		Glass,upper Oven ,heat Barrier ,hbi				$ 192.73
16B	318212212		Glass,upper Oven ,heat Barrier ,hbii				$ 249.80
17A	318264720		Spacer,glass ,upper ,(2)		Appelez-nous	-
23A	318024753		Hinge,door ,upper ,(2)		Appelez-nous	-
3A	318301422		Trim,upper Door ,black		Appelez-nous	-
4A	318934201		Glass Assembly,door ,black ,upper ,w/trim & Badge		Appelez-nous	-
6A	318260524		Baffle,door ,upper		Appelez-nous	-
7A	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
7B	318372007		Insulation,upper Door ,(2)		Appelez-nous	-
9A	318259664		Liner,oven Door ,upper		Appelez-nous	-
NI	316433603		Label,anti-tip				$ 3.55
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304471237		Screw,8-32 X .310 ,(4)		Appelez-nous	-
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,silver ,(4)				$ 15.17
