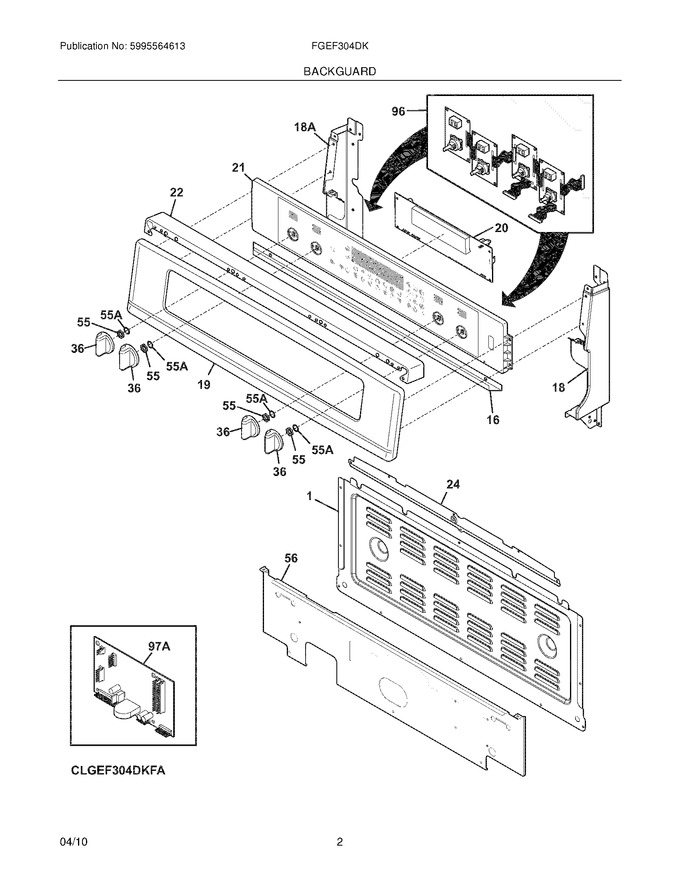

03 - Backguard


05 - Body


07 - Maintop


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318314110		Panel,cover ,upper		Appelez-nous	-
16	318571401		Brace,control Panel		Appelez-nous	-
18	318311934		End Cap,backsplash ,black ,rh				$ 55.39
19	318573501		Panel,control ,black		Appelez-nous	-
22	318413501		Cap,top ,black ,backguard				$ 64.44
24	318566201		Trim,back ,upper		Appelez-nous	-
36	316575201		Knob,control ,black		Appelez-nous	-
55	316247700		Nut,mounting				$ 18.20
56	318534912		Shield,backguard ,black ,inner		Appelez-nous	-
18A	318311935		End Cap,backsplash ,black ,lh				$ 55.39
55A	316247800		Washer,lock ,mtg				$ 18.20
F20	316443850		Control,electronic ,es615w5 ,dual Oven			Immediately	$ 306.15
F21	318566006		Timer Assembly,es610w5 ,black ,w/overlay				$ 385.17
F96	318411411		Control Assembly,complete ,rotary ,w/4 Controls				$ 310.04
F97A	316442063		Board,power ,uib				$ 100.68
FNI	318532133		Harness,wiring ,control ,to Relay				$ 227.90
FNI	318532134		Harness,wiring ,power Board				$ 109.24
FNI	318402362		Harness,wiring ,interface		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318573700		Bracket,control Panel		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
