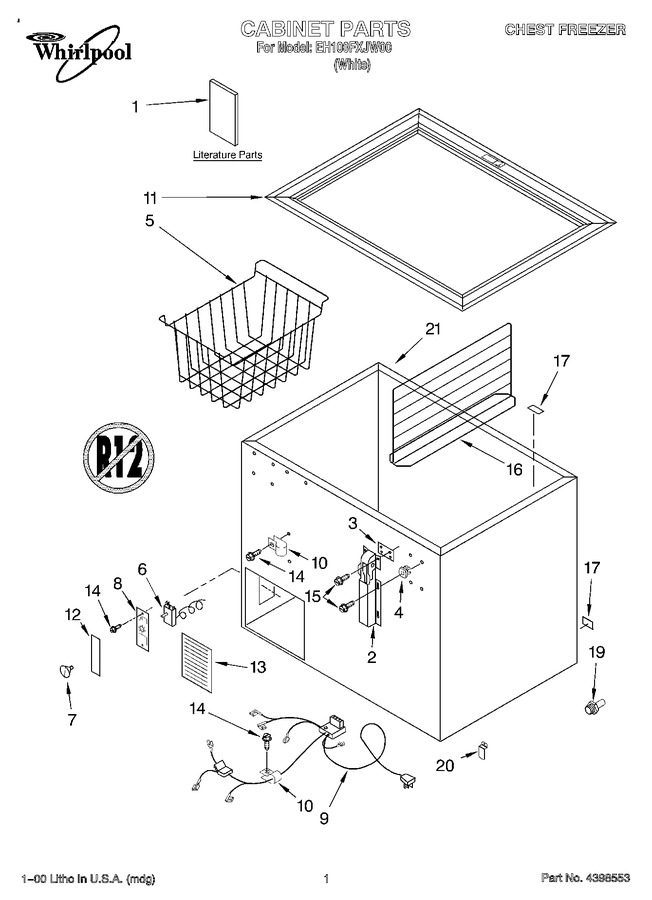

SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4356755		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT4356739		Literature Parts (use & Care Guide)		Appelez-nous	-
2	4356752		Hinge Assembly				$ 130.99
3	1-17548-006		Hinge Spacer   (Replaces: 4356463)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356754		Wire Basket (standard, Lower (2))		Appelez-nous	-
5	4356750		Wire Basket (large, Top (1))		Appelez-nous	-
6	WP4-35940-001		Thermostat   (Replaces: 4356670)				$ 148.16
7	4356585		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 4356674)		Appelez-nous	-
9	4356733		External, Wiring Harness		Appelez-nous	-
10	488946		Plastic, Clip (2)   (Replaces: 4356643)				$ 18.41
11	4356633		Breaker Strip		Appelez-nous	-
12	4356584		Insert, Control		Appelez-nous	-
13	4356622		Access Panel				$ 70.79
14	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
15	4356491		Screw		Appelez-nous	-
16	4356529		Divider (optional)		Appelez-nous	-
17	4356456		Drain Plug		Appelez-nous	-
19	W11663505		Drain Adaptor   (Replaces: 4356481)				$ 15.45
20	4356728		Clip		Appelez-nous	-
21	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
21	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
21	4356703		Clip, Gasket (kit Of 60)				$ 43.62
21	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
21	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07

    View Diagram in Separate Window       Print Part List
