SELECT A DIAGRAM

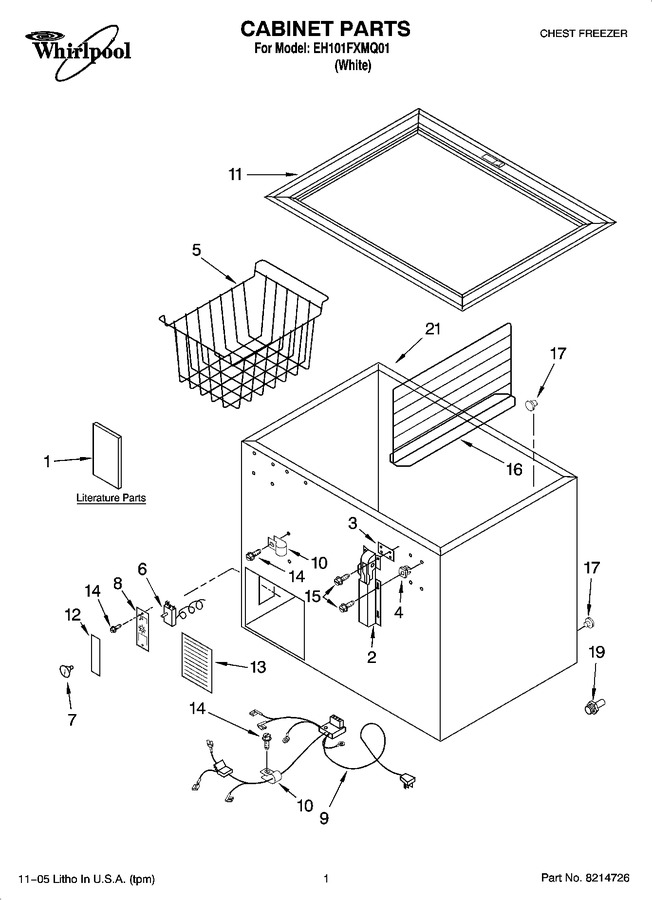

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356790		Energy Guide		Appelez-nous	-
1	2300216		Owner`s Manual		Appelez-nous	-
2	4356752		Hinge Assembly				$ 130.99
3	1-17548-006		Hinge Spacer   (Replaces: 4356463)				$ 18.64
4	4356321		Plastic, Grommet				$ 11.72
5	4356750		Wire Basket (large, Top (2))		Appelez-nous	-
6	WP4-35940-001		Thermostat   (Replaces: 8210276)				$ 148.16
7	4356769		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 8210234)		Appelez-nous	-
9	4-35130-004		External, Wiring Harness   (Replaces: 4356743)				$ 209.65
10	488946		Plastic, Clip (2)   (Replaces: 4356643)				$ 18.41
11	4356633		Breaker Strip		Appelez-nous	-
12	4356584		Insert, Control		Appelez-nous	-
13	4356622		Access Panel				$ 70.79
14	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
15	4356491		Screw		Appelez-nous	-
16	4356731		Divider (optional)		Appelez-nous	-
17	4356456		Drain Plug		Appelez-nous	-
19	N/A		Customer Touch-up Material		Appelez-nous	-
19	W11663505		Drain Adaptor   (Replaces: 4356481)				$ 15.45
19	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
19	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
19	4356489		Clip, Gasket (kit Of 60)		Appelez-nous	-
19	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07

    View Diagram in Separate Window       Print Part List
