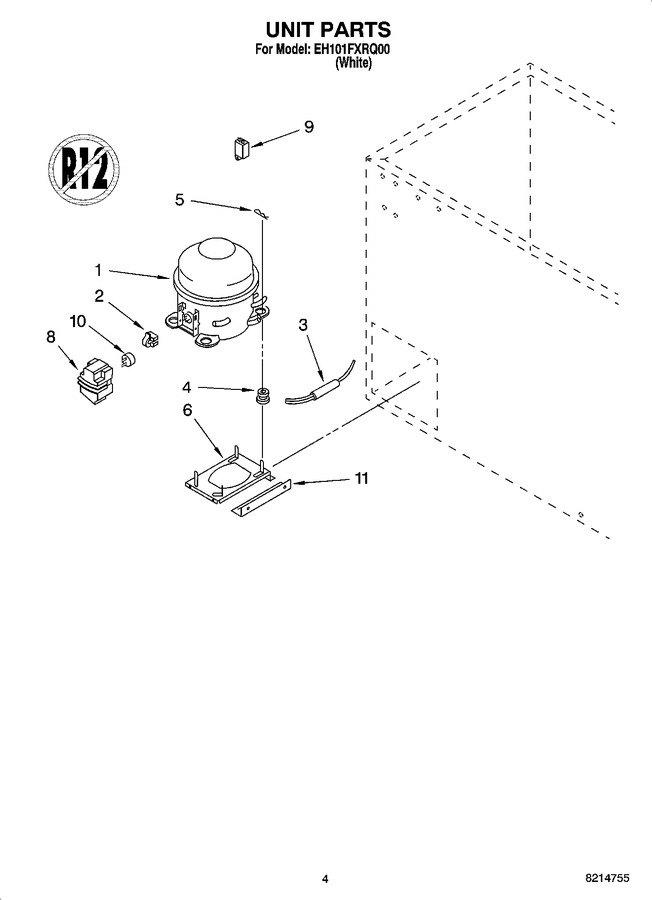

03 - Unit Parts, Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10237328 | Compressor (includes Items 2,3,4,5,8,9 & 10) (Replaces: 4356783) |
|
$ 532.85 | |||||
| 2 | W11673287 | Relay (Replaces: 8210313) |
|
$ 70.63 | |||||
| 3 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 9.64 | ||||
| 4 | 4356335 | Grommet, Mounting Compressor |
|
- | |||||
| 5 | 4356336 | Clip, Hitch Pin |
|
- | |||||
| 6 | 4356590 | Compressor, Base |
|
- | |||||
| 8 | WP2162358 | Cover (Replaces: 4356599) |
|
$ 81.68 | |||||
| 9 | 8210309 | Capacitor |
|
- | |||||
| 10 | 61004883 | Overload (Replaces: 4356785) |
|
$ 43.10 | |||||
| 11 | 3-81556-001 | Brace (Replaces: 4356720) |
|
- | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4356703 | Clip, Gasket (kit Of 60) |
|
$ 43.62 |
