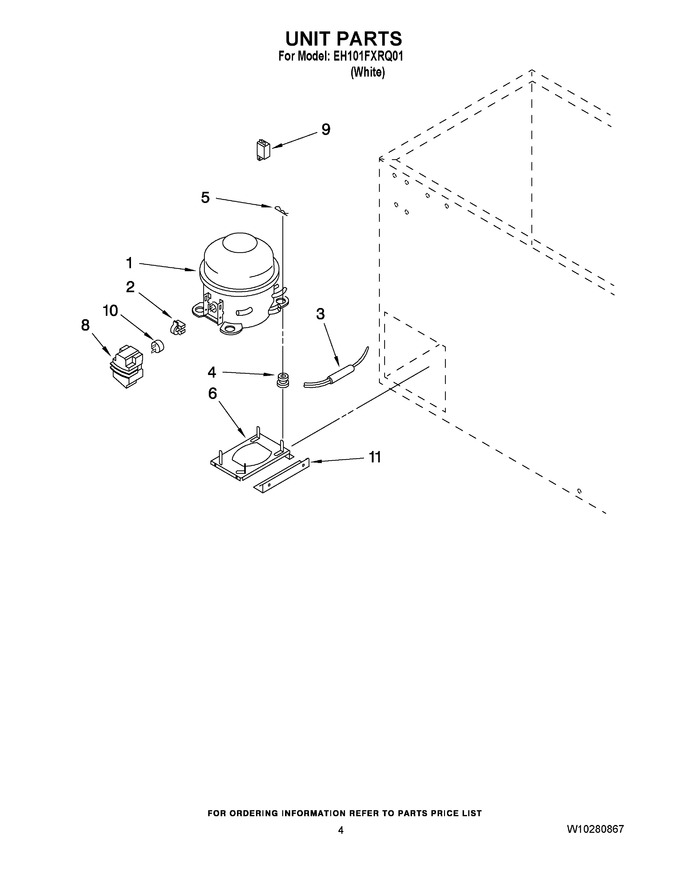

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10823815		Compressor (includes Items 2,3,4,5,8,9 & 10)   (Replaces: 8210260)				$ 606.74
2	4356738		Relay				$ 53.17
3	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
4	4356335		Grommet, Mounting Compressor		Appelez-nous	-
5	W10202610		Clip, Hitch Pin		Appelez-nous	-
6	4356590		Compressor, Base		Appelez-nous	-
8	8210242		Cover		Appelez-nous	-
9	8210309		Capacitor		Appelez-nous	-
10	8210241		Overload				$ 88.68
11	3-81556-001		Brace   (Replaces: 4356720)		Appelez-nous	-
NI	N/P		Refrigerant Charge (4.5 Oz. (r-134a))		Appelez-nous	-
