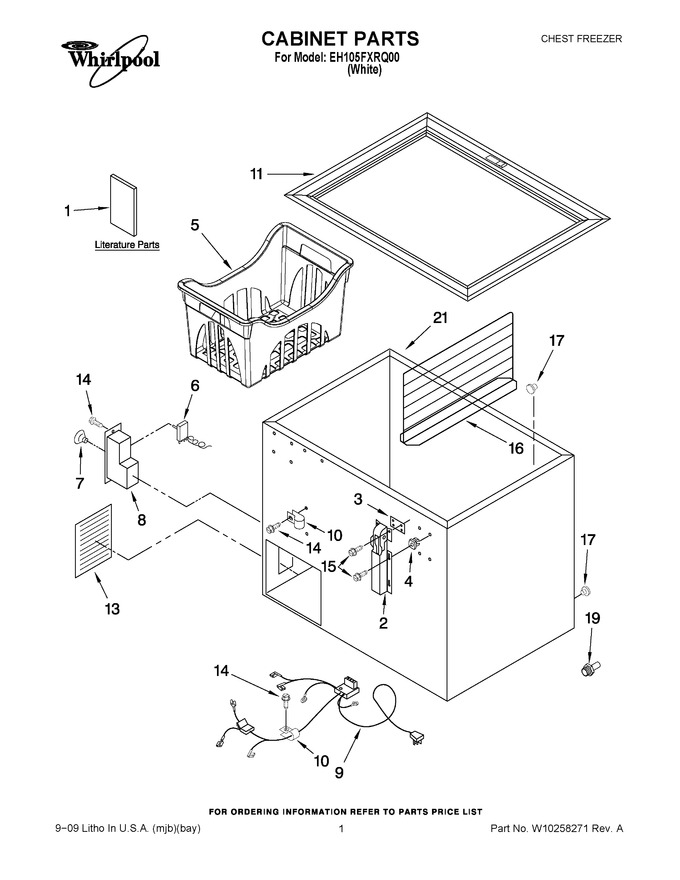

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10280872		Energy Guide		Appelez-nous	-
1	8210431		Owners Manual		Appelez-nous	-
2	4356752		Hinge Assembly				$ 130.99
3	1-17548-006		Spacer, Hinge   (Replaces: 4356463)				$ 18.64
4	4356321		Plastic, Grommet				$ 11.72
5	W10295028		Basket, Upper (basket, Lower)		Appelez-nous	-
6	4-35940-004		Thermostat   (Replaces: 8210320)				$ 228.09
7	4356769		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 8210319)		Appelez-nous	-
9	4-35130-004		External, Wiring Harness   (Replaces: 4356743)				$ 209.65
10	488946		Plastic, Clip (2)   (Replaces: 4356643)				$ 18.41
11	4356634		Breaker Strip		Appelez-nous	-
13	4356622		Access Panel				$ 70.79
14	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
15	4356491		Screw		Appelez-nous	-
16	4356731		Divider (optional)		Appelez-nous	-
17	4356456		Drain Plug		Appelez-nous	-
19	W11663505		Drain Adaptor   (Replaces: 4356481)				$ 15.45
21	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
