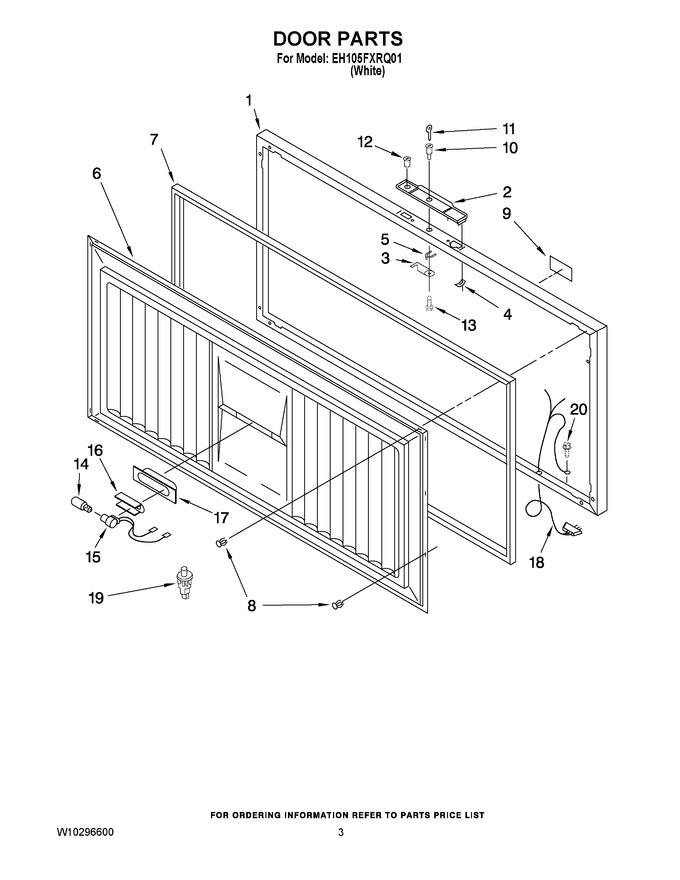

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68001576		Exterior Door Panel (includes Insulation)		Appelez-nous	-
2	68001700		Handle		Appelez-nous	-
3	W10296583		Hook Bolt		Appelez-nous	-
4	4356306		Clip, Handle Oblong				$ 7.36
5	4356493		Clip, Spring		Appelez-nous	-
6	W10295026		Interior Door Panel		Appelez-nous	-
7	4356651		Gasket				$ 133.13
8	4356703		Plastic, Mounting Clip				$ 43.62
9	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 79.87
10	3-35284-001		Lock Kit   (Replaces: 4356759)				$ 24.42
11	4356304		Key		Appelez-nous	-
12	W10295029		Signal Light		Appelez-nous	-
13	W11233072		Screw   (Replaces: 4356609)			Immediately	$ 12.62
14	W10873798		Light Bulb   (Replaces: 4356311)			Immediately	$ 12.53
15	4356874		Socket		Appelez-nous	-
16	4356704		Heat Shield				$ 11.85
17	3-25693-001		Reflector   (Replaces: 4356500)				$ 15.36
18	8210316		Wire Harness		Appelez-nous	-
19	W10917237		Switch   (Replaces: 4356796)				$ 39.14
20	WP488787		Screw   (Replaces: 488787)				$ 9.52
