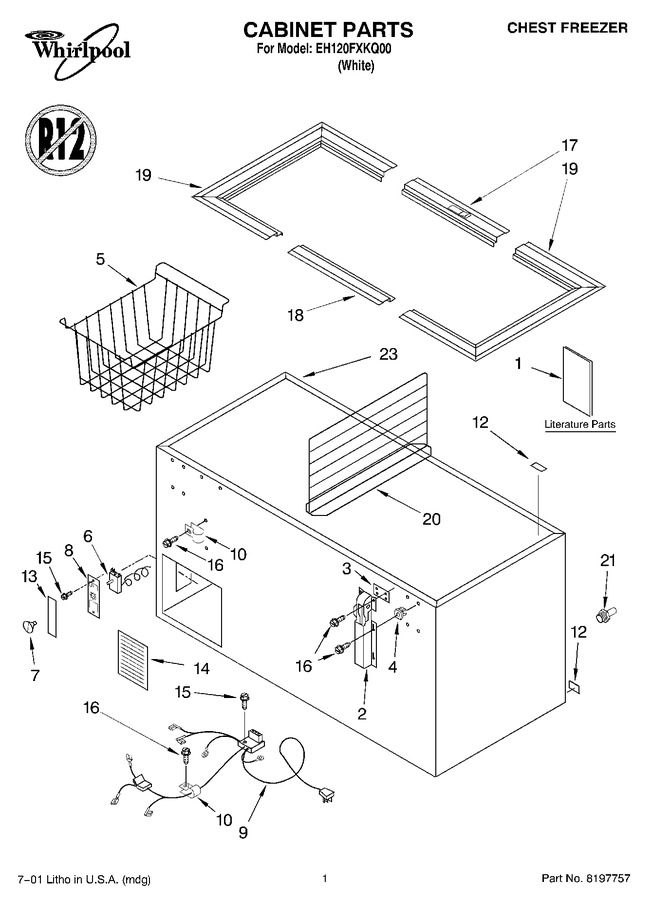

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4356739		Literature Parts (owner`s Manual)		Appelez-nous	-
1	LIT4356786		Literature Parts (energy Guide)		Appelez-nous	-
2	4356782		Hinge, Assembly		Appelez-nous	-
3	1-17548-006		Hinge Spacer   (Replaces: 4356463)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356750		Basket, Wire (top, Large)		Appelez-nous	-
6	WP4-35940-001		Thermostat   (Replaces: 4356773)				$ 148.16
7	4356769		Thermostat, Knob		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 4356674)		Appelez-nous	-
9	4-35130-004		External, Wiring Harness   (Replaces: 4356743)				$ 209.65
10	488946		Clip   (Replaces: 4356643)				$ 18.41
12	4356456		Drain Plug		Appelez-nous	-
13	4356584		Insert, Control		Appelez-nous	-
14	4356622		Access Panel				$ 70.79
15	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
16	4356491		Screw		Appelez-nous	-
17	4-35011-004		Front, Breaker Strip   (Replaces: 4356637)				$ 75.80
18	4-35010-004		Rear, Breaker Strip   (Replaces: 4356636)		Appelez-nous	-
19	4356792		End, Breaker Strip (2)		Appelez-nous	-
20	4356731		Divider (optional)		Appelez-nous	-
21	W11663505		Drain, Adapter   (Replaces: 4356481)				$ 15.45
23	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
23	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
23	4356489		Clip, Gasket (kit Of 60)		Appelez-nous	-
23	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
23	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
