SELECT A DIAGRAM
01 - Blower Plenum
02 - Body
03 - Control Panel
04 - Top Assembly
New Model Search:

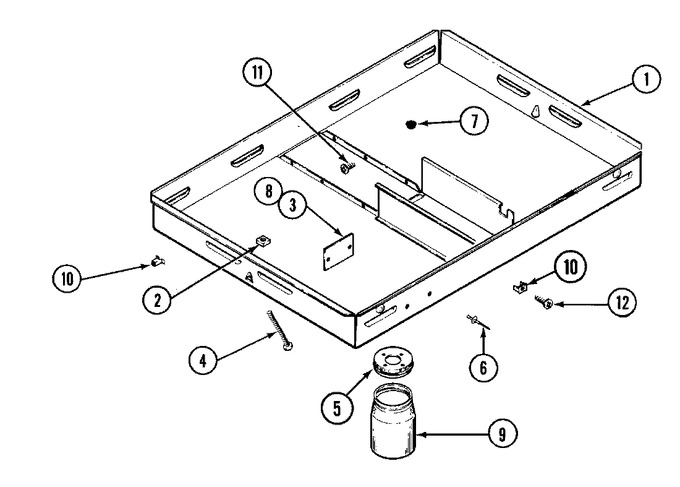

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 701992 | Box, Burner | 10 |
|
- | ||||
| 2 | M0282009 | Nut,square (Replaces: Y707124) | 10 |
|
$ 12.06 | ||||
| 3 | 707746 | Insulator | 10 |
|
- | ||||
| 4 | Y707121 | Screw | 10 |
|
- | ||||
| 5 | Y707870 | Lid, Jar | 10 |
|
- | ||||
| 6 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 10 |
|
$ 12.14 | ||||
| 7 | Y707695 | Bushing | 10 |
|
- | ||||
| 8 | Y707664 | Washer | 10 |
|
- | ||||
| 9 | WPY707869 | Jar, Drain (Replaces: Y707869) | 10 |
|
$ 61.43 | ||||
| 10 | Y700503 | Clip, Retainer | 10 |
|
- | ||||
| 11 | W11233072 | Screw (Replaces: Y707347) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 |
