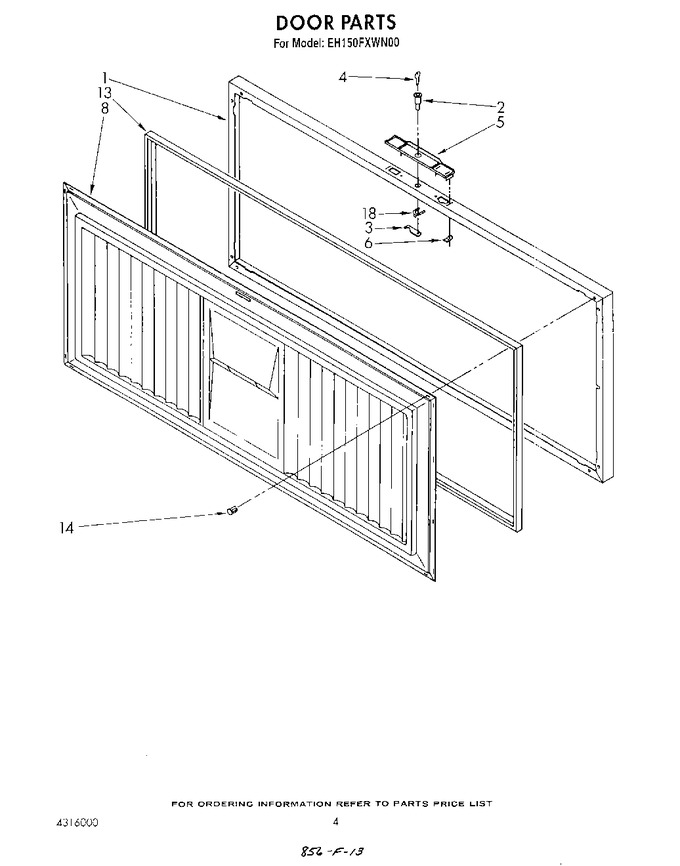

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4356360 | Exterior, Door Panel |
|
- | |||||
| 2 | 4356302 | Lock |
|
- | |||||
| 3 | 2-35195-002 | Hook Bolt, Lock (Replaces: 4356303) |
|
$ 57.10 | |||||
| 4 | 4356304 | Key |
|
- | |||||
| 5 | 4356366 | Handle |
|
- | |||||
| 6 | 4356306 | Clip, Oblong |
|
$ 7.36 | |||||
| 8 | 4356361 | Interior, Door Panel |
|
- | |||||
| 13 | WP4-35260-005 | Gasket (Replaces: 4356364) |
|
$ 287.65 | |||||
| 14 | 4356317 | Gasket, Clip |
|
- | |||||
| 18 | 983465 | Clip, Spring |
|
- |
