SELECT A DIAGRAM

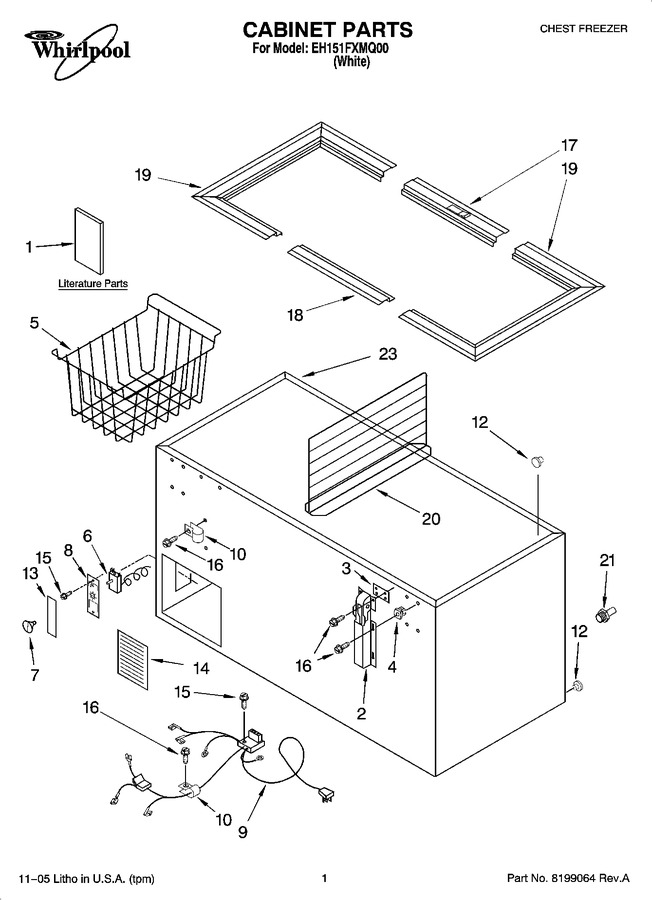

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210233		Owner`s Manual		Appelez-nous	-
1	8210232		Energy Guide		Appelez-nous	-
2	4356723		Hinge, Assembly				$ 174.99
3	1-17548-006		Hinge Spacer   (Replaces: 4356463)				$ 18.64
4	4356321		Plastic, Grommet				$ 11.72
5	4356770		Basket, Wire (lower, Standard)		Appelez-nous	-
5	W11553315		Basket, Wire (top, Large (1))   (Replaces: 4356771)				$ 88.53
6	WP4-35940-001		Thermostat   (Replaces: 4356773)				$ 148.16
7	4356769		Thermostat, Knob		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 8210234)		Appelez-nous	-
9	4-35136-002		Wiring, Harness External   (Replaces: 8210231)				$ 213.24
10	488946		Clip   (Replaces: 4356643)				$ 18.41
12	4356456		Drain Plug		Appelez-nous	-
13	4356584		Insert, Control		Appelez-nous	-
14	4356622		Access Panel				$ 70.79
15	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
16	4356491		Screw		Appelez-nous	-
17	4-35011-004		Front, Breaker Strip   (Replaces: 4356637)				$ 75.80
18	4-35010-004		Rear, Breaker Strip   (Replaces: 4356636)		Appelez-nous	-
19	W11045300		End, Breaker Strip (2)   (Replaces: 4356635)				$ 80.74
20	4356477		Divider (optional)		Appelez-nous	-
21	W11663505		Drain, Adapter   (Replaces: 4356481)				$ 15.45
23	N/A		Customer Touch-up Material		Appelez-nous	-
23	4356489		Clip, Gasket (kit Of 60)		Appelez-nous	-
23	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
23	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
23	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12

    View Diagram in Separate Window       Print Part List
