SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts

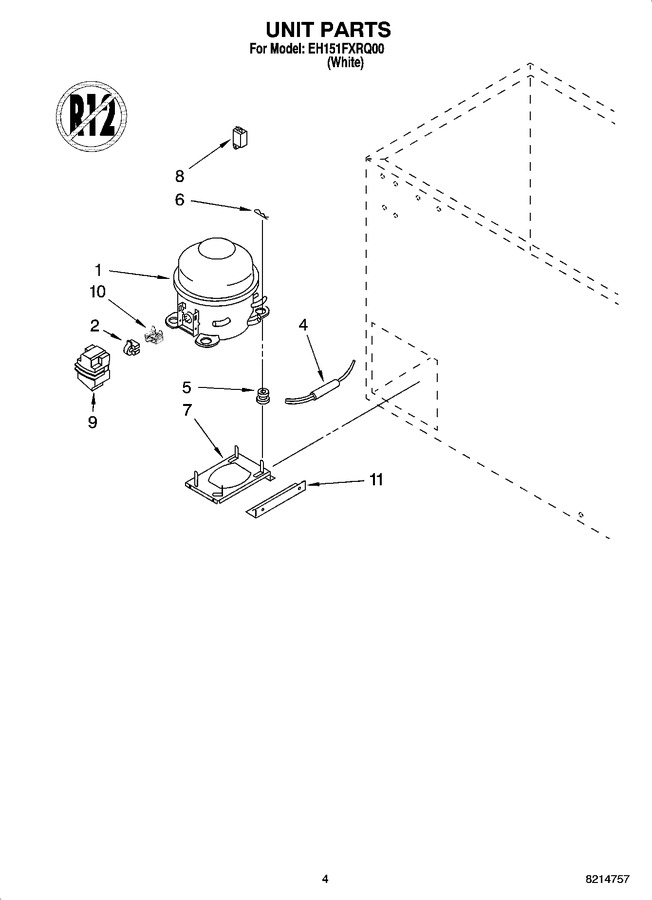

03 - Unit Parts, Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4356760 | Compressor (includes Items 2, 3, 4, 5, 6 & 9) |
|
- | |||||
| 2 | 4356738 | Relay |
|
$ 53.17 | |||||
| 4 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 9.64 | ||||
| 5 | 4356335 | Compressor, Mounting Grommet |
|
- | |||||
| 6 | 4356336 | Compressor, Hitch Pin |
|
- | |||||
| 7 | 4356590 | Compressor, Base |
|
- | |||||
| 8 | 8210309 | Capacitor |
|
- | |||||
| 9 | 4356777 | Cover |
|
- | |||||
| 10 | WP2214067 | Overload (Replaces: 4390624) |
|
$ 118.49 | |||||
| 11 | 3-81556-001 | Brace (Replaces: 4356720) |
|
- | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 4356489 | Clip, Gasket (kit Of 60) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
