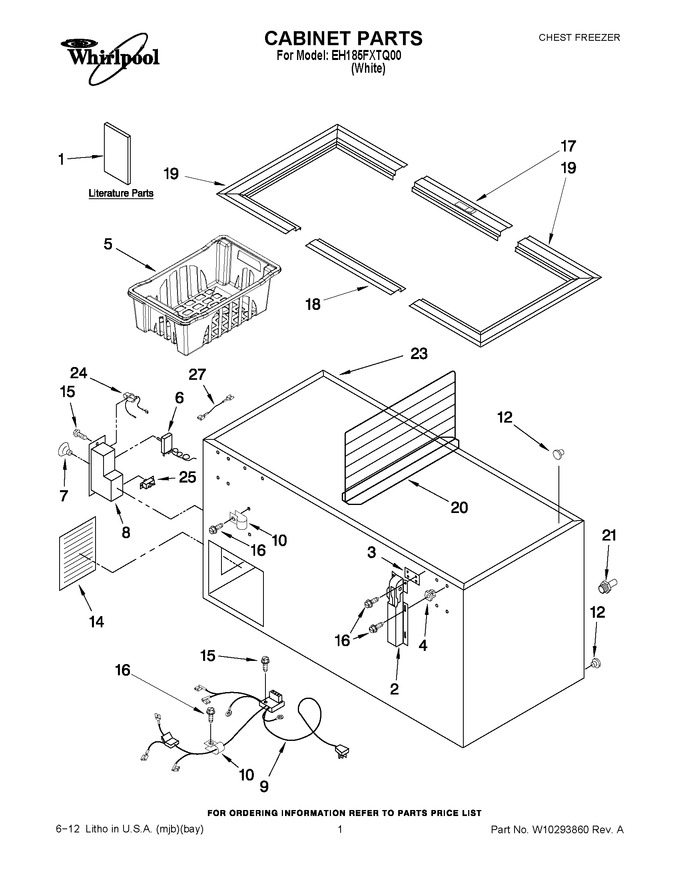

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10296515		Energy Guide		Appelez-nous	-
1	W10296514		Owners Manual		Appelez-nous	-
2	4356723		Hinge, Assembly				$ 174.99
3	1-17548-006		Spacer, Hinge   (Replaces: 4356463)				$ 18.64
4	4356321		Plastic, Grommet				$ 11.72
5	8210318		Basket (lower (2))		Appelez-nous	-
5	W11553315		Basket (upper (2))   (Replaces: 8210317)				$ 88.53
6	4-35940-004		Thermostat   (Replaces: 8210320)				$ 228.09
7	4356769		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 8210319)		Appelez-nous	-
9	8210325		Harness, Wiring		Appelez-nous	-
10	488946		Clip   (Replaces: 4356671)				$ 18.41
12	4356456		Plug, Drain		Appelez-nous	-
14	4356622		Access Panel				$ 70.79
15	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
16	4356491		Screw		Appelez-nous	-
17	4-35011-004		Front, Breaker Strip   (Replaces: 4356637)				$ 75.80
18	4-35010-004		Rear, Breaker Strip   (Replaces: 4356636)		Appelez-nous	-
19	W10296516		End, Breaker Strip (2)		Appelez-nous	-
20	4356477		Divider (optional)		Appelez-nous	-
21	W11663505		Drain, Adapter   (Replaces: 4356481)				$ 15.45
23	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
24	8210321		Alarm (buzzer)		Appelez-nous	-
25	2-32307		Switch, Alarm   (Replaces: 8210323)				$ 76.86
27	8210324		Wire, Lead		Appelez-nous	-
