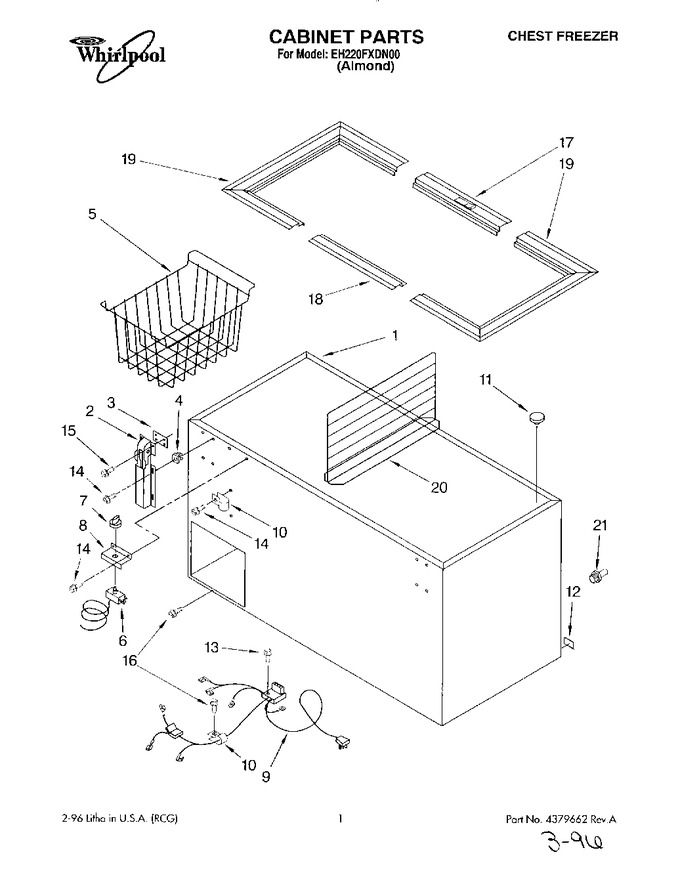

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	4356519		Hinge, Assembly		Appelez-nous	-
3	1-17548-006		Hinge Spacer   (Replaces: 4356369)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356322		Wire Basket		Appelez-nous	-
6	4356323		Thermostat		Appelez-nous	-
7	4356324		Thermostat, Knob		Appelez-nous	-
8	4356521		Thermostat, Control Bracket		Appelez-nous	-
9	4356507		Wiring, Harness External		Appelez-nous	-
10	488946		Plastic, Clip   (Replaces: 4356328)				$ 18.41
11	4356334		Drain, Cap		Appelez-nous	-
12	4356333		Drain, Plug		Appelez-nous	-
13	487980		Screw		Appelez-nous	-
14	WP308685		Screw   (Replaces: 308685)			Immediately	$ 7.08
15	W11233072		Screw   (Replaces: 4356496)			Immediately	$ 12.62
16	4356491		Screw		Appelez-nous	-
17	4356313		Front, Breaker Strip		Appelez-nous	-
18	4356315		Rear, Breaker Strip		Appelez-nous	-
19	4356314		End, Breaker Strip (2)		Appelez-nous	-
20	4356477		Divider		Appelez-nous	-
21	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
21	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
21	W11663505		Adapter, Drain   (Replaces: 4356481)				$ 15.45
21	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
21	4356489		Clip, Gasket (kit Of 60)		Appelez-nous	-
	LIT4356574		Energy Label		Appelez-nous	-
	LIT2165301		Use & Care Guide		Appelez-nous	-
