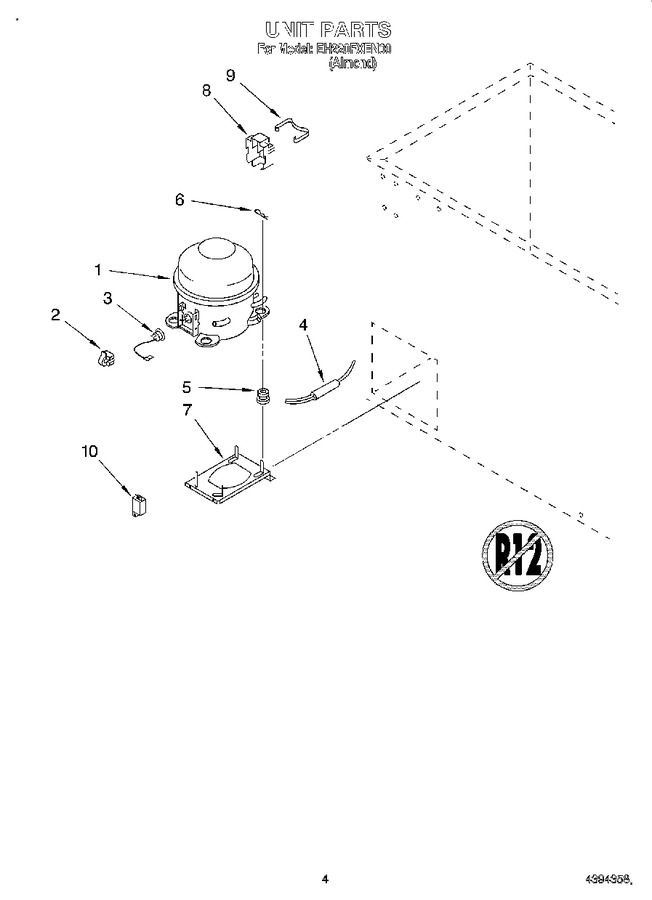

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10309994 | Compressor (includes Items 2, 3, 4, 5, 6, 8 & 9) (Replaces: 4356596) |
|
Immediately | $ 551.61 | ||||
| 2 | 4356994 | Relay |
|
- | |||||
| 3 | 2183409 | Overload (Replaces: 4390576) |
|
$ 111.81 | |||||
| 4 | 4007A | Drier (Replaces: 4356332) |
|
Immediately | $ 13.55 | ||||
| 5 | 4356335 | Compressor, Mounting Grommet |
|
- | |||||
| 6 | 4356336 | Compressor, Hitch Pin |
|
- | |||||
| 7 | 4356590 | Base, Compressor |
|
- | |||||
| 8 | 4356946 | Cover |
|
- | |||||
| 9 | 4356951 | Clip, Cover |
|
- | |||||
| 10 | WPW10662129 | Capacitor (Replaces: 4356601) |
|
Immediately | $ 52.97 |
