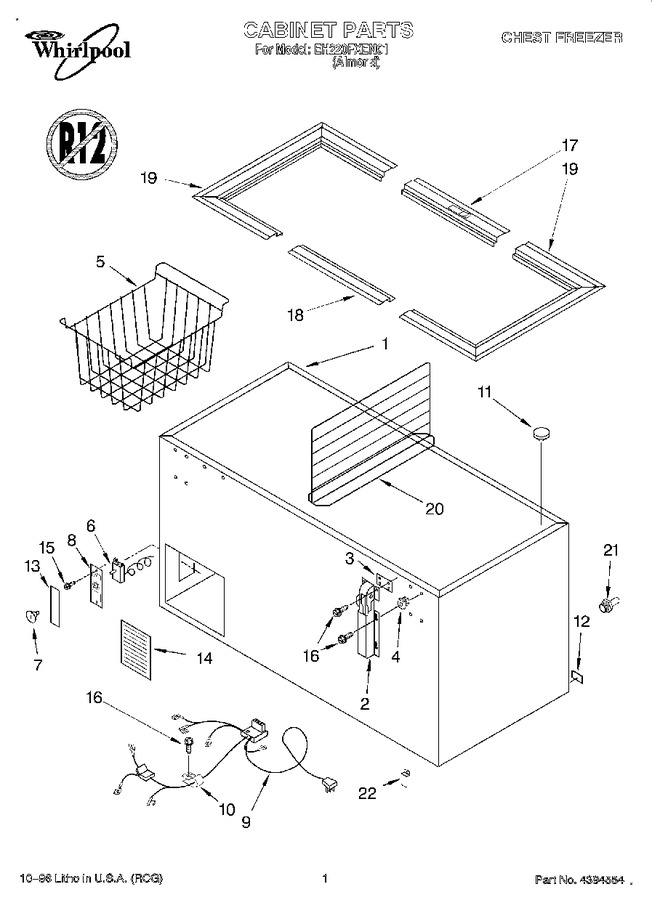

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	4356519		Hinge, Assembly		Appelez-nous	-
3	1-17548-006		Hinge Spacer   (Replaces: 4356369)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356322		Wire Basket		Appelez-nous	-
6	4356323		Thermostat		Appelez-nous	-
7	4356585		Knob, Thermostat		Appelez-nous	-
8	4356582		Control Box		Appelez-nous	-
9	4356612		Wiring, Harness External				$ 38.50
10	488946		Plastic, Clip   (Replaces: 4356589)				$ 18.41
11	4356455		Drain Cap		Appelez-nous	-
12	4356559		Drain Plug		Appelez-nous	-
13	4356584		Insert, Control		Appelez-nous	-
14	4356591		Access Panel		Appelez-nous	-
15	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
16	4356491		Screw		Appelez-nous	-
17	4356619		Front, Breaker Strip		Appelez-nous	-
18	4356620		Rear, Breaker Strip		Appelez-nous	-
19	4356615		End, Breaker Strip (2)		Appelez-nous	-
20	4356477		Divider (optional)		Appelez-nous	-
21	W11663505		Adapter, Drain   (Replaces: 4356481)				$ 15.45
22	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
22	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
22	4356403		Clip		Appelez-nous	-
22	4356489		Clip, Gasket (kit Of 60)		Appelez-nous	-
22	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	LIT4356621		Energy Label		Appelez-nous	-
	LIT2165301		Use & Care Guide		Appelez-nous	-
