SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section

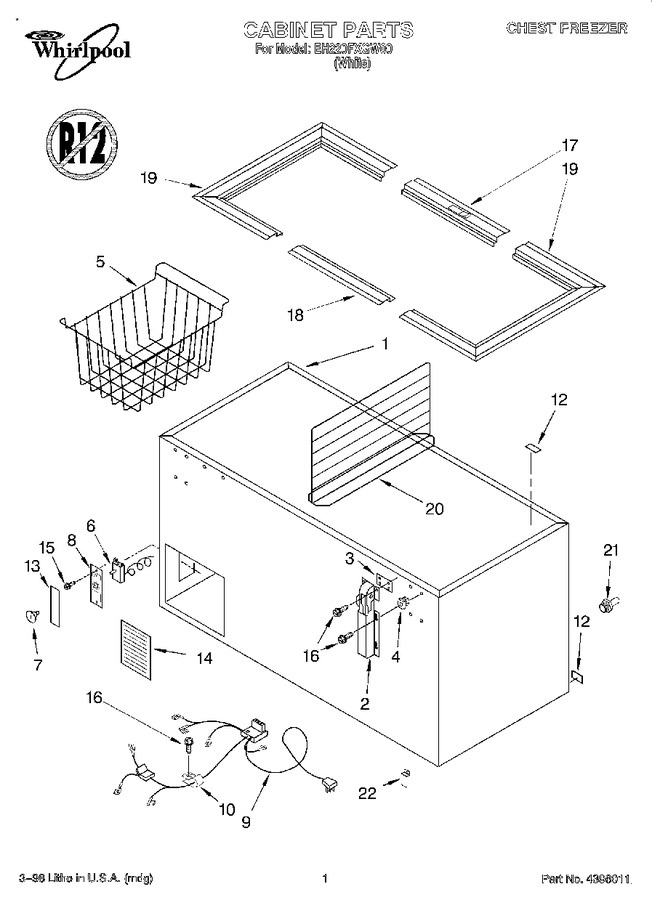

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11192185		Hinge, Assembly   (Replaces: 4356504)				$ 164.89
3	1-17548-006		Hinge Spacer   (Replaces: 4356463)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356322		Wire Basket		Appelez-nous	-
6	WP4-35940-001		Thermostat   (Replaces: 4356670)				$ 148.16
7	4356585		Knob, Thermostat		Appelez-nous	-
8	4356669		Control Box		Appelez-nous	-
9	4356612		Wiring, Harness External				$ 38.50
10	488946		Plastic, Clip   (Replaces: 4356671)				$ 18.41
12	4356456		Drain Plug		Appelez-nous	-
13	4356584		Insert, Control		Appelez-nous	-
14	4356612		Access Panel				$ 38.50
15	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
16	4356491		Screw		Appelez-nous	-
17	4356641		Front, Breaker Strip		Appelez-nous	-
18	W11045298		Rear, Breaker Strip   (Replaces: 4356642)		Appelez-nous	-
19	W11045300		End, Breaker Strip (2)   (Replaces: 4356635)				$ 80.74
20	4356477		Divider (optional)		Appelez-nous	-
21	W11663505		Adapter, Drain   (Replaces: 4356481)				$ 15.45
22	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 46.30
22	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
22	4356403		Clip		Appelez-nous	-
22	4356703		Clip, Gasket (kit Of 60)				$ 43.62
22	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	LIT4356698		Energy Label		Appelez-nous	-
	LIT2165301		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
