SELECT A DIAGRAM

01 - Cover


03 - Control Panel

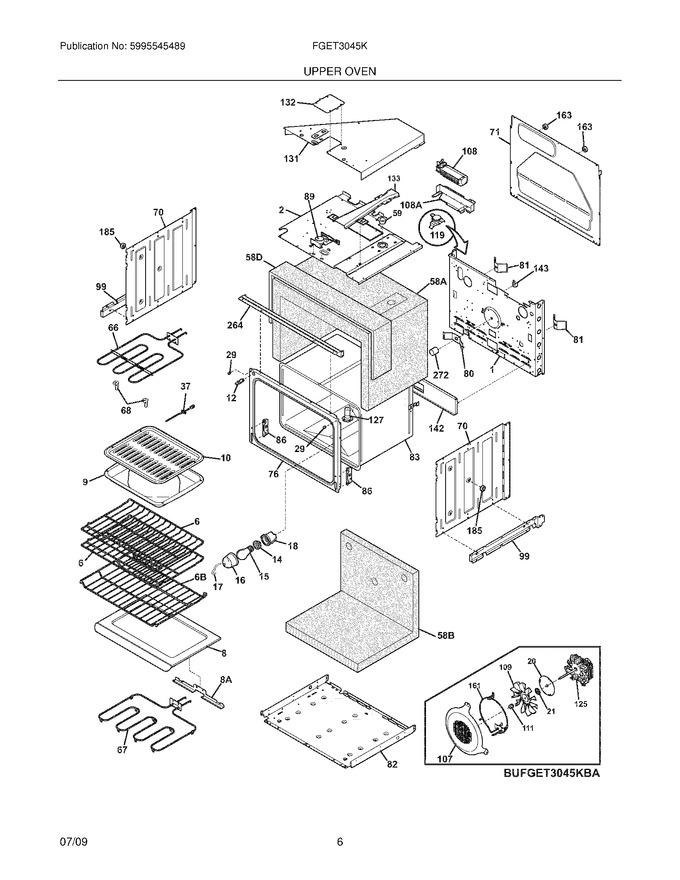

05 - Upper Oven


07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318258957		Shield,insulation ,upper		Appelez-nous	-
6	318922301		Rack,oven			Immediately	$ 163.05
8	318262001		Cover,element				$ 398.49
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
18	318222400		Housing,oven Light				$ 58.22
29	316517600		Spacer,oven Door				$ 12.05
56	318903676		Trim,side Filler ,black ,rh   (Replaces: 318903604)				$ 126.86
59	318072577		Duct,oven Vent				$ 16.30
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
68	5304403015		Support,hanger ,(4) ,broil Element				$ 35.04
70	318259105		Shield,insulation ,sides ,(2)				$ 91.51
71	318260007		Panel,rear Box				$ 102.90
76	318056292		Front,oven				$ 131.67
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258765		Shield,insulation ,lower				$ 85.68
83	318261444		Liner,oven Assy		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318260622		Bracket,cable Mtg.		Appelez-nous	-
90	318259701		Trim,oven Front,black,bottom				$ 114.45
99	318256201		Bracket,side ,bottom ,(2)				$ 56.70
107	318219405		Cover,fan				$ 82.69
127	318357001		Adapter Assembly,w/vent Tube ,and Catalyst				$ 50.66
133	318347800		Chimney		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer,(4)		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257821		Trim,oven ,black ,front		Appelez-nous	-
56A	318903605		Trim,side Filler ,black ,lh		Appelez-nous	-
58A	318536600		Insulation,wrapper ,top And Sides				$ 85.42
58B	318133791		Insulation,oven Back ,back/bottom		Appelez-nous	-
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
6B	318919801		Rack,oven				$ 335.42
8A	318318600		Bracket,element ,hidden Bake				$ 37.17
F108	318251300		Bracket,fan Support				$ 54.60
F108	318073028		Motor,blower			Immediately	$ 271.69
F119	318004900		Switch,thermal				$ 60.25
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F66	318255801		Element,broil ,3400w				$ 99.39
F67	318254906		Element,bake ,3400w ,8 Pass			Immediately	$ 259.36
F89	318261229		Motor,latch Assy   (Replaces: 318261215)			Immediately	$ 93.62
FNI	318532135		Harness,wiring ,latch ,no Bas		Appelez-nous	-
FNI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 174.43
FNI	318532184		Harness,wiring ,main		Appelez-nous	-
FNI	318402206		Wiring Harness,main ,latch		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5303323136		Screw-ground		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303324184		Screw,8-18 X 5/16 ,black ,(4)			Immediately	$ 14.18
NI	318368501		Seal,housing ,flat Washer		Appelez-nous	-
NI	318268099		Insulation,oven Light		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	318165800		Spacer				$ 17.72
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5304470882		· Screw,anti-tip ,8 - 5/8 ,black ,(2)				$ 13.46

    View Diagram in Separate Window       Print Part List
