01 - Cabinet Parts
02 - Door Parts

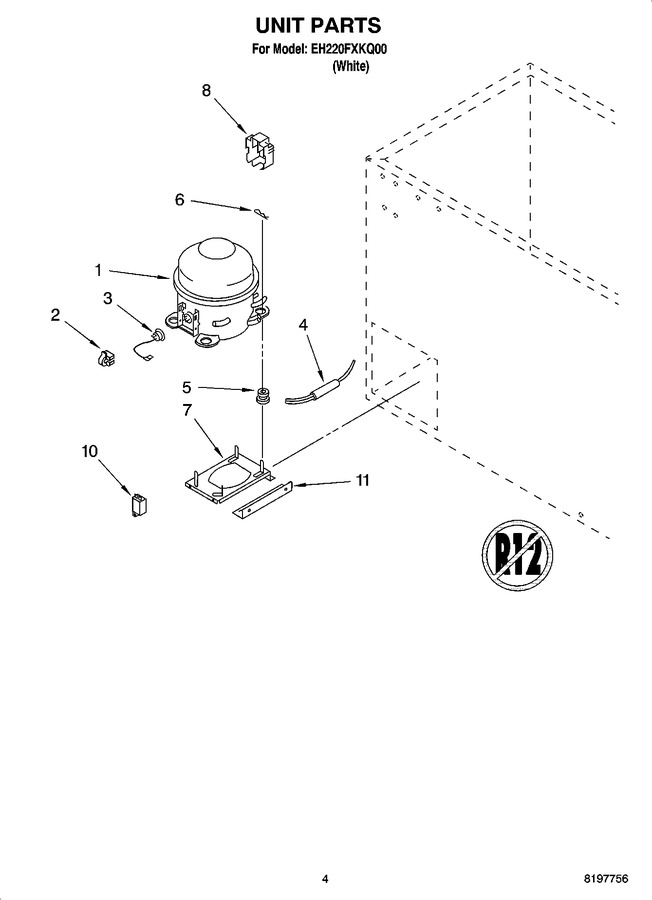

03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10309994 | Compressor (includes Items 2, 3, 4, 5, 6, 8 & 9) (Replaces: 4356775) |
|
Immediately | $ 551.61 | ||||
| 2 | 4356738 | Relay |
|
$ 53.17 | |||||
| 3 | 2-34286-021 | Overload (Replaces: 4356776) |
|
$ 123.71 | |||||
| 4 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 9.64 | ||||
| 5 | 4356335 | Compressor, Mounting Grommet |
|
- | |||||
| 6 | 4356336 | Compressor, Hitch Pin |
|
- | |||||
| 7 | 4356590 | Compressor, Base |
|
- | |||||
| 8 | 4356777 | Cover |
|
- | |||||
| 10 | 4356498 | Capacitor |
|
- | |||||
| 11 | 3-81556-001 | Brace (Replaces: 4356672) |
|
- |
