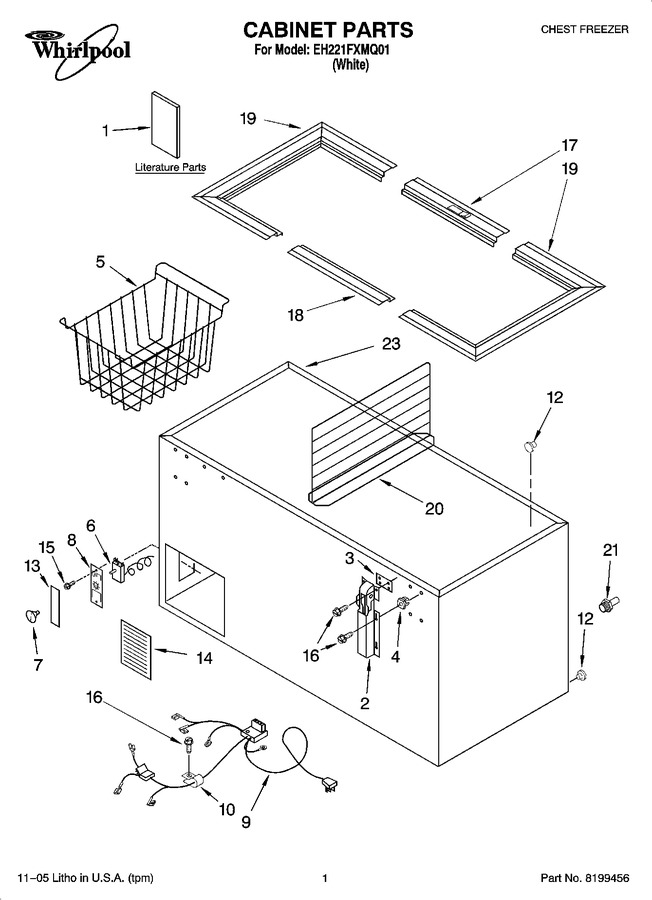

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2300216		Use & Care Guide		Appelez-nous	-
2	W11192185		Hinge, Assembly   (Replaces: 4356504)				$ 164.89
3	1-17548-006		Hinge Spacer   (Replaces: 4356463)				$ 18.64
4	4356321		Plastic, Grommet				$ 11.72
5	4356770		Wire Basket (lower, Standard (2))		Appelez-nous	-
5	W11553315		Wire Basket (top, Large (2))   (Replaces: 4356771)				$ 88.53
6	WP4-35940-001		Thermostat   (Replaces: 8210276)				$ 148.16
7	4356769		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 8210234)		Appelez-nous	-
9	4-35136-002		Wiring, Harness External   (Replaces: 8210231)				$ 213.24
10	488946		Plastic, Clip   (Replaces: 4356643)				$ 18.41
12	4356456		Drain Plug		Appelez-nous	-
13	4356584		Insert, Control		Appelez-nous	-
14	4356622		Access Panel				$ 70.79
15	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
16	4356491		Screw		Appelez-nous	-
17	4356641		Front, Breaker Strip		Appelez-nous	-
18	W11045298		Rear, Breaker Strip   (Replaces: 4356642)		Appelez-nous	-
19	W11045300		End, Breaker Strip (2)   (Replaces: 4356635)				$ 80.74
20	4356477		Divider (optional)		Appelez-nous	-
21	W11663505		Adapter, Drain   (Replaces: 4356481)				$ 15.45
23	N/A		Customer Touch-up Material		Appelez-nous	-
23	350956		Enamel, Almond (13 Oz. Spray Can)				$ 46.30
23	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
23	4356703		Clip, Gasket (kit Of 60)				$ 43.62
23	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
