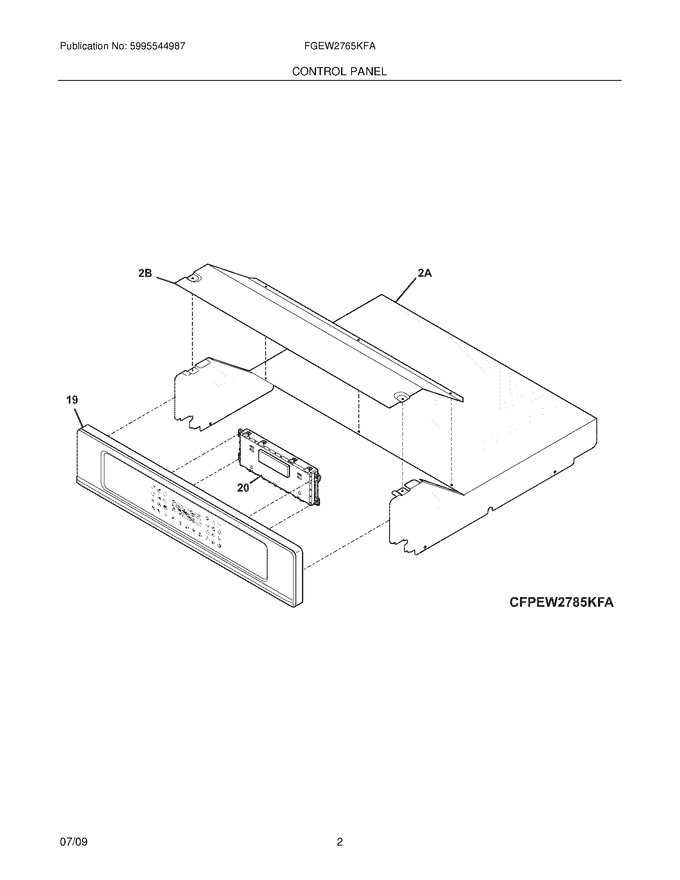

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2A	318257301		Shield,oven Top		Appelez-nous	-
2B	318260101		Cover,box		Appelez-nous	-
F19	318575107		Panel Assembly,control ,black/stainless		Appelez-nous	-
F20	316462867		Clock/timer,electronic ,es530w2			Immediately	$ 365.53
NI	5303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8   (Replaces: 5304454881)				$ 10.02
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
