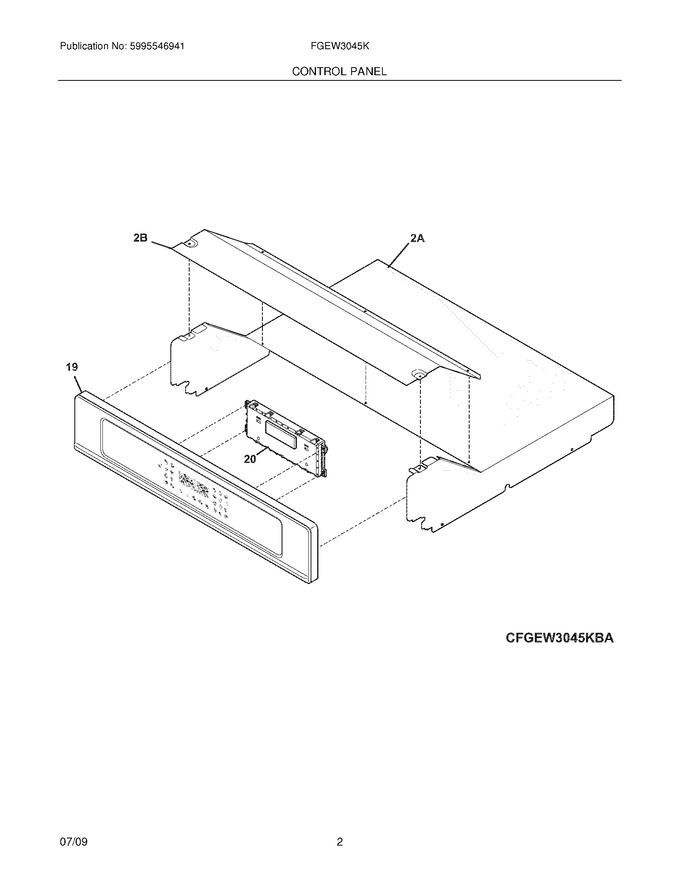

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2A	318257300		Shield,oven Top				$ 89.36
2B	318260100		Cover,box				$ 44.42
F19	318575126		Panel Assembly,control ,black ,w/overlay-trim		Appelez-nous	-
F20	316560146		Controller,electronic ,es530w0				$ 381.32
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	316519700		Screw,no.8-18 X 3/8   (Replaces: 5304454881)				$ 10.02
