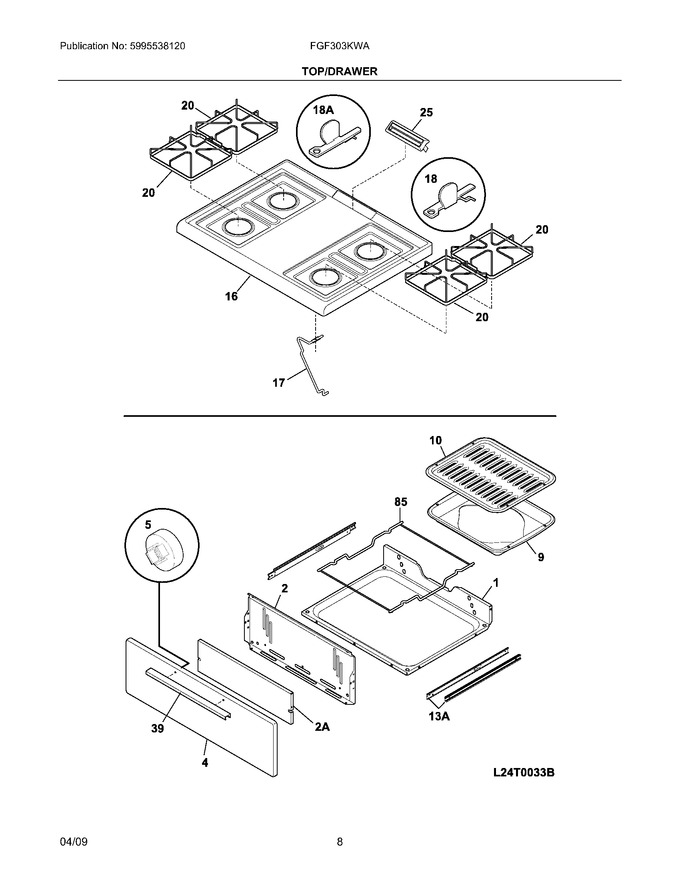

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage,low Broil				$ 232.57
2	316236401		Liner,low Broil				$ 119.96
4	316231211		Panel-drawer,white				$ 51.92
5	316129100		Fastener,push-in Nut ,nylon ,spacer		Appelez-nous	-
9	316081902		Pan,broiler ,slate Blue				$ 83.42
10	316082002		Insert,broiler Pan ,slate Blue				$ 81.14
16	316273001		Main Top,white				$ 414.87
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
25	316104500		Cover,vent ,chrome		Appelez-nous	-
39	316019512		Handle,drawer ,black		Appelez-nous	-
85	316115600		Rack-low Broil				$ 105.47
13A	316534200		Glide-low Broil, Inner				$ 42.75
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
2A	316541500		Shield,broiler				$ 61.37
F20	316277801		Grate,black ,(4)				$ 124.03
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021120		Screw,shoulder Head ,8-18 X 5/8 ,(2) ,square Drive				$ 13.28
