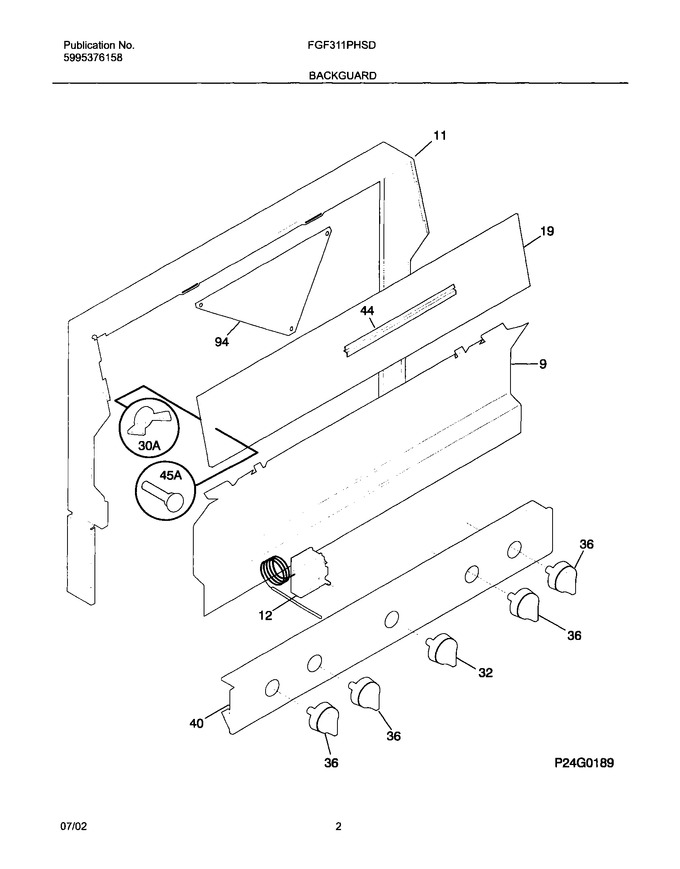

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316133501		Trim-splasher,white ,lower		Appelez-nous	-
11	316057003		Trim,wrapper ,white		Appelez-nous	-
19	316034130		Panel-control,white		Appelez-nous	-
32	316102303		Knob,thermostat ,white				$ 61.43
36	316009046		Knob,top Valve ,white ,(4)   (Replaces: 316009009)				$ 51.57
40	316086820		Panel-manifold, White		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
94	316111300		Stiffener,backguard		Appelez-nous	-
30A	316064300		Nut,nylon		Appelez-nous	-
45A	316056903		Bolt,fastener ,nylon ,white ,(2)		Appelez-nous	-
F12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316097602		Insulator		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
