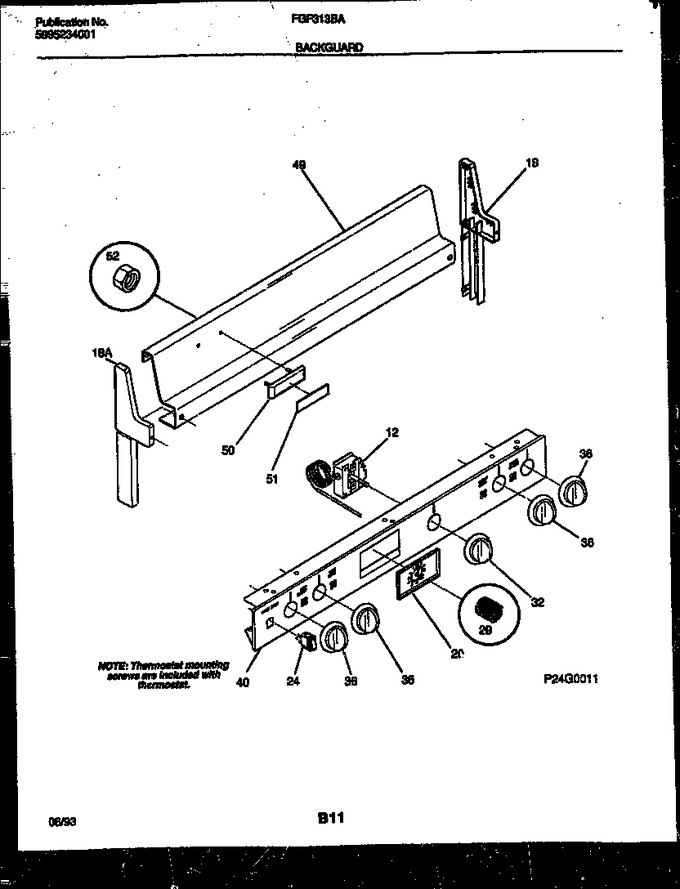

02 - Backguard
03 - Burner Parts
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 316032411 | Thermostat-oven (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 18 | 3202802 | Cap-end, Black, Rh |
|
- | |||||
| 20 | 316041201 | Clock/timer, Analog 1 Stem |
|
- | |||||
| 24 | 5304527841 | Switch-light/lamp, Rocker, Black (Replaces: 316005602) |
|
Immediately | $ 11.38 | ||||
| 29 | 316029000 | Knob-clock |
|
- | |||||
| 32 | 316053600 | Knob-thermostat |
|
- | |||||
| 36 | 316049300 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 316008801 | Panel-manifold |
|
- | |||||
| 49 | 3051199 | Panel-backguard, White |
|
- | |||||
| 50 | 3051113 | Bezel, Nameplate |
|
- | |||||
| 51 | 316006609 | Nameplate |
|
- | |||||
| 52 | 5303131215 | Nut, Twist |
|
- | |||||
| 18A | 3202801 | Cap-end, Black, Lh |
|
- |
