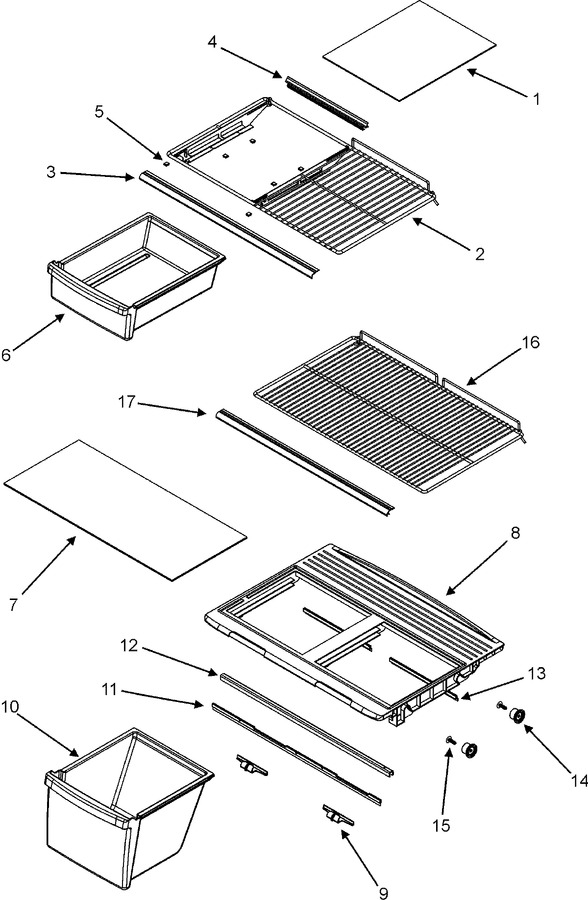

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	63001614		Glass, Wire Shelf	50	Appelez-nous	-
2	63001616		Shelf, Wire	50	Appelez-nous	-
3	63001617		Trim, Shelf (frt)	50	Appelez-nous	-
4	63001668		Trim, Shelf (rear)	50	Appelez-nous	-
5	63001364		Cap, Sliding	50	Appelez-nous	-
6	63001618		Pan, Deli	50	Appelez-nous	-
7	63001585		Glass, Crisper Shelf	50			$ 76.32
8	63001586		Shelf, Crisper	50			$ 106.22
9	63001376		Slide, Control	50	Appelez-nous	-
10	63001621		Pan, Crisper	50	Appelez-nous	-
11	63001588		Seal, Crisper Shelf (frt)	50			$ 25.01
12	63001589		Rail, Crisper Support	50	Appelez-nous	-
13	63001590		Seal, Crisper Shelf (rear)	50			$ 25.30
14	63001045		Support, Crisper Shelf	50	Appelez-nous	-
15	63001276		Screw	50	Appelez-nous	-
16	63001619		Shelf, Wire	50	Appelez-nous	-
17	63001620		Trim, Shelf (frt)	50	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
